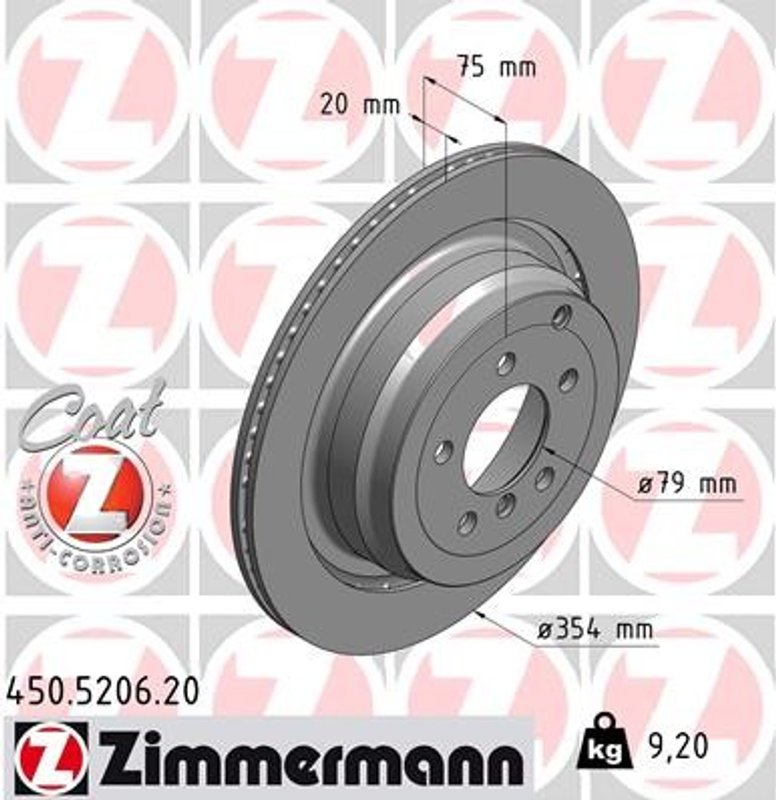

Zimmermann 450.5206.20 Disc Brake Rotor - Rear
| Brand | Zimmermann 450.5206.20 |
|---|---|
| Position | Rear |
| Bolt Hole Circle Ø 1 [mm] | 120 |
| Brake Disc Type | Externally vented |
| Height [mm] | 75 |
| Hole Arrangement / Number | 7/5 |
| Hub Bore Ø [mm] | 79 |
| Minimum thickness [mm] | 17 |
| Outer Diameter | 352 |
| Surface | Coated |
| Thickness [mm] | 20 |
| Weight [kg] | 9,2 |
| Fits | Land Rover · 1 vehicle |
Coated surface. Helps resist corrosion and improves the rotor's appearance.
Externally vented design. Supports heat dissipation during repeated braking.
OEM-specified construction. Built to manufacturer dimensions and material quality standards.
Cross-references Brembo 09.9373.21, Dynomax 17733 and Standard Ignition V440 for the same application. See all 26.
Overview
The Zimmermann 450.5206.20 is a coated disc brake rotor built for a specific rear application on the 2011 Land Rover Range Rover. It combines an externally vented design with manufacturer-specified dimensions and material quality for a direct replacement-style fit.
Key Features
- Coated surface helps resist corrosion and improves visual appearance.
- Externally vented rotor design supports heat dissipation during braking.
- Manufactured to OEM-specified dimensions and material quality.
- Fits the 2011 Land Rover Range Rover, rear.
- Part number 450.5206.20 for accurate ordering and identification.
Detailed Description
Zimmermann standard brake rotors are produced as equivalent-quality replacement parts and are manufactured to match the dimensions and material standards specified by vehicle manufacturers. This rotor uses a coated finish and an externally vented construction, making it a practical choice for drivers replacing a worn rear brake rotor on the 2011 Land Rover Range Rover. The 450.5206.20 is also cross-referenced to Brembo 09.9373.21 for the same application.
For buyers searching for a Land Rover Range Rover rear brake rotor, this part number 450.5206.20 provides a clear match for the listed fitment and a coated surface for added corrosion resistance. Zimmermann 450.5206.20 is part of the brand’s standard rotor range, which is built to align with original-part specifications.
Common Issues It May Solve
- Brake pulsation caused by a worn or uneven rotor surface.
- Reduced braking consistency from rotor thickness wear.
- Corrosion on the rotor face or hat area.
- Noise related to damaged or heat-affected brake discs.
- Service replacement for a rear rotor on the 2011 Land Rover Range Rover.
Installation Notes and Tips
Verify rotor dimensions, hub bore, bolt pattern, and minimum thickness before installation. Confirm the vehicle is the 2011 Land Rover Range Rover, rear, and compare the existing rotor to part number 450.5206.20 to ensure correct application. Brake system service should include inspection of pads, caliper condition, and mounting surfaces.
Quality Assurance
Zimmermann states that its standard rotors are equivalent-quality replacement parts manufactured to OEM-specified dimensions and material quality. The coated surface is part of the brand’s Coat Z anti-corrosion rotor range.
| Year | Make | Model | Body Type | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2011 | Land Rover | Range Rover | Sport Utility | AWD | 5.0L | V8 | GAS | Rear | — |
