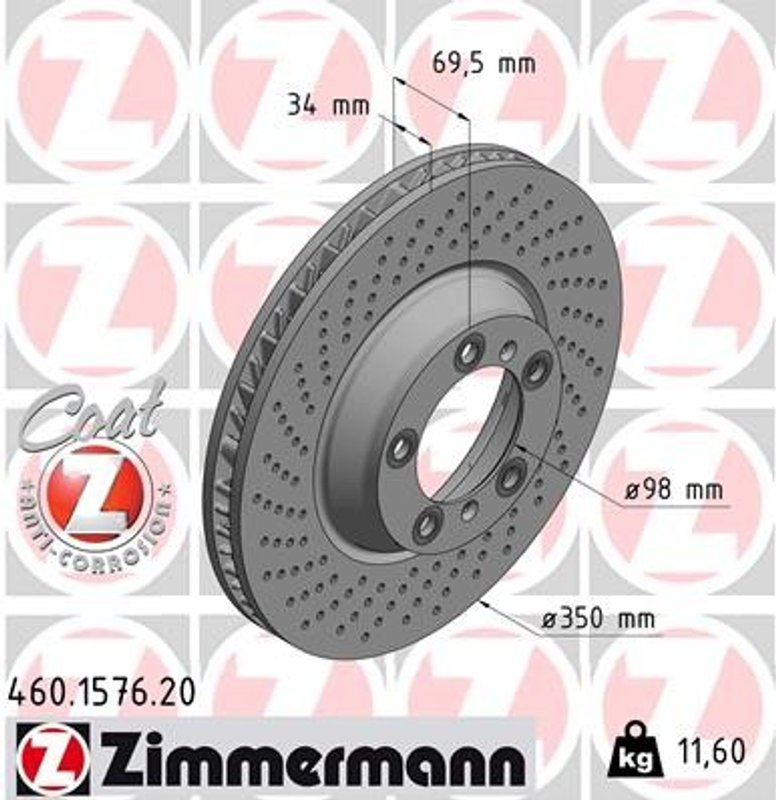

Zimmermann 460.1576.20 Disc Brake Rotor
| Brand | Zimmermann 460.1576.20 |
|---|---|
| Bolt Hole Circle Ø 1 [mm] | 130 |
| Brake Disc Type | Perforated |
| Height [mm] | 69,5 |
| Hole Arrangement / Number | 7/5 |
| Hub Bore Ø [mm] | 98 |
| Inspection Tag | Ece r90 approved |
| Minimum thickness [mm] | 32 |
| Outer Diameter | 350 |
| Paired article numbers | 460.1577.20 |
| Surface | Coated |
| Thickness [mm] | 34 |
| Weight [kg] | 11,6 |
| Fits | Porsche · 8 vehicles |
Perforated design. Helps manage heat during repeated braking and service use.
Coated surface. Adds corrosion resistance and a cleaner finished appearance.
ECE R90 approved. Built for regulated aftermarket brake replacement use.
Cross-references Bosch 18136, 460.1576.00 and 997 351 405 00 for the same application. See all 5.
Overview
Zimmermann 460.1576.20 is a perforated disc brake rotor with a coated surface and ECE R90 approval. It is built to match manufacturer-specified dimensions and material quality for a direct brake service replacement.
Compatible with Porsche 911 brake applications, this rotor combines a 350 mm outer diameter, 34 mm thickness, and 32 mm minimum thickness for the specified fitment. The coated finish adds corrosion resistance and a cleaner appearance.
Key Features
- Perforated disc brake rotor for consistent braking performance.
- Coated surface helps resist corrosion and maintain appearance.
- ECE R90 approved for regulated replacement use.
- 350 mm outer diameter with 34 mm nominal thickness.
- Zimmermann part number 460.1576.20 for catalog matching.
Detailed Description
Zimmermann 460.1576.20 is a standard replacement brake rotor engineered to match original-fit specifications in size and material quality. The perforated design supports heat management during repeated braking, while the coated surface helps protect the rotor from corrosion. This rotor is listed for 2010-2013 Porsche 911 applications and is identified by part number 460.1576.20.
Zimmermann’s standard rotor range is positioned as equivalent-quality replacement hardware, and this part carries ECE R90 approval for regulated aftermarket use. The paired article number is 460.1577.20, which is useful when matching the opposite side during brake service on Porsche 911 vehicles.
Common Uses
- Replacing a worn or below-spec brake rotor.
- Addressing brake pulsation caused by rotor wear or variation.
- Restoring braking surface thickness within service limits.
- Correcting corrosion on the rotor face or hat area.
- Servicing Porsche 911 brake systems with the correct rotor specification.
Installation Notes
Verify rotor diameter, hub bore, bolt circle, and thickness before installation. Confirm the minimum thickness specification of 32 mm and inspect related brake components for wear during service. Fitment for this Zimmermann rotor is 2010-2013 Porsche 911, N/A.
Quality Assurance
Zimmermann states that its standard brake rotors are manufactured to manufacturer-specified dimensions and material quality, and this rotor is ECE R90 approved. Part number 460.1576.20 is also cross-referenced to Bosch 18136 for the same application.
| Year | Make | Model | Body Type | Drive Type | Liters | Cylinders | Fuel Type | Notes |
|---|---|---|---|---|---|---|---|---|
| 2013 | Porsche | 911 | Convertible | AWD | 3.8L | H6 | GAS | — |
| 2012 | Porsche | 911 | Coupe | AWD | 3.8L | H6 | GAS | — |
| 2012 | Porsche | 911 | Convertible | AWD | 3.8L | H6 | GAS | — |
| 2011 | Porsche | 911 | Coupe | AWD | 3.8L | H6 | GAS | — |
| 2011 | Porsche | 911 | Convertible | AWD | 3.8L | H6 | GAS | — |
| 2011 | Porsche | 911 | Coupe | RWD | 3.6L | H6 | GAS | — |
| 2010 | Porsche | 911 | Coupe | AWD | 3.8L | H6 | GAS | — |
| 2010 | Porsche | 911 | Convertible | AWD | 3.8L | H6 | GAS | — |
