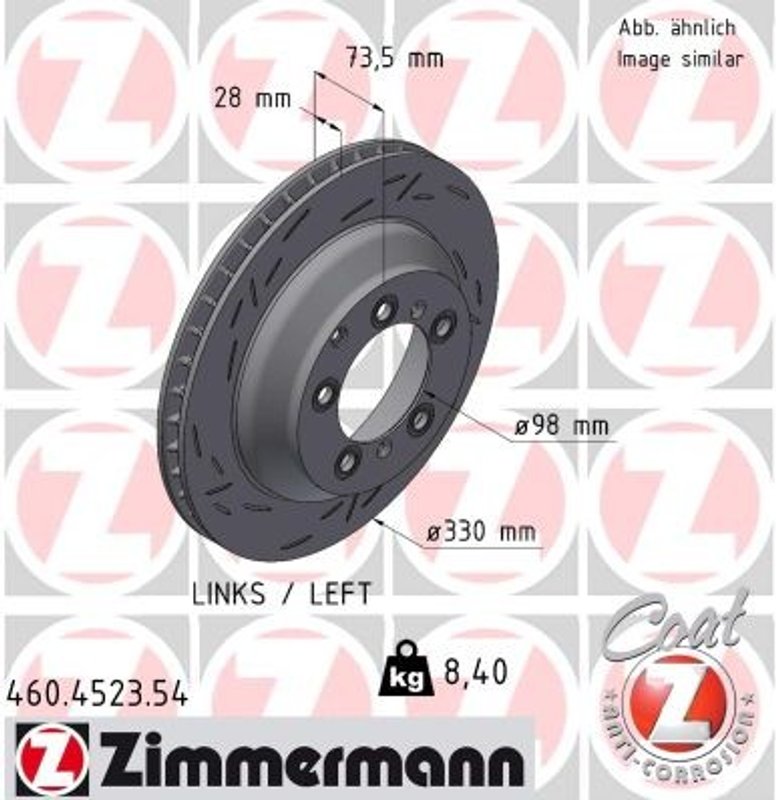

Zimmermann 460.4523.54 Disc Brake Rotor - Rear
| Brand | Zimmermann 460.4523.54 |
|---|---|
| Position | Rear |
| Bolt Hole Circle Ø 1 [mm] | 130 |
| Brake Disc Type | Internally vented |
| Centering Diameter [mm] | 98 |
| Height [mm] | 74 |
| Hole Arrangement / Number | 8/5 |
| Inner diameter [mm] | 210 |
| Inspection Tag | Ece r90 approved |
| Machining | High-carbon |
| Minimum thickness [mm] | 26 |
| Outer Diameter | 330 |
| Paired article numbers | 460.4523.55 |
| Surface | Coated |
| Thickness [mm] | 28 |
| Weight [kg] | 8,4 |
| Fits | Porsche · 3 vehicles |
Internally vented. Helps manage heat during braking for more consistent rotor performance.
Coated surface. Adds finish protection before installation and during storage.
ECE R90 approved. Meets a recognized standard for aftermarket brake rotor compliance.
Cross-references Zimmermann 460.4523.20, Zimmermann 460.4523.55 and 09.C987.21 for the same application. See all 9.
Brake Rotor for Porsche Cayenne
This Zimmermann disc brake rotor is built for the rear brake position on the 2019-2021 Porsche Cayenne. Part number 460.4523.54 combines an internally vented design with high-carbon machining and a coated surface for a service-ready replacement.
Key Features
- Fits 2019-2021 Porsche Cayenne, rear.
- Internally vented rotor design helps manage heat during braking.
- High-carbon machining supports stable braking performance.
- Coated surface helps protect the rotor finish before installation.
- ECE R90 approved for regulated aftermarket brake replacement.
- 330 mm outer diameter with 28 mm thickness and 26 mm minimum thickness.
Detailed Description
Zimmermann part number 460.4523.54 is a rear disc brake rotor engineered for the Porsche Cayenne platform listed in the fitment data. The rotor uses an internally vented construction, an 8/5 hole arrangement, a 130 mm bolt hole circle, and a 98 mm centering diameter to match the specified application. Its high-carbon machining and coated surface support consistent service characteristics, while the ECE R90 approval identifies it as a regulated replacement brake component. The paired article number is 460.4523.55, and this part cross-references Monroe Shocks & Struts (e.g., 09.C987.21, 9Y0 615 601 A) for the same application.
What It Is Used For
- Replacing a worn rear brake rotor on the Porsche Cayenne.
- Correcting brake pulsation caused by rotor wear or thickness variation.
- Restoring braking surface condition after scoring or heat damage.
- Addressing noise or vibration linked to rotor deterioration.
Installation Notes and Tips
Verify rotor dimensions, hub centering, and bolt pattern before installation. Clean the hub mounting surface thoroughly so the coated rotor seats evenly. Inspect pads and related brake components at the same time to confirm the braking system is ready for service.
Quality Assurance
ECE R90 approval provides a recognized standard for aftermarket brake rotor compliance. Zimmermann part number 460.4523.54 is specified for the rear position on the 2019-2021 Porsche Cayenne.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2021 | Porsche | Cayenne | 4.0L | V8 | Rear | — |
| 2020 | Porsche | Cayenne | 4.0L | V8 | Rear | — |
| 2019 | Porsche | Cayenne | 4.0L | V8 | Rear | — |
