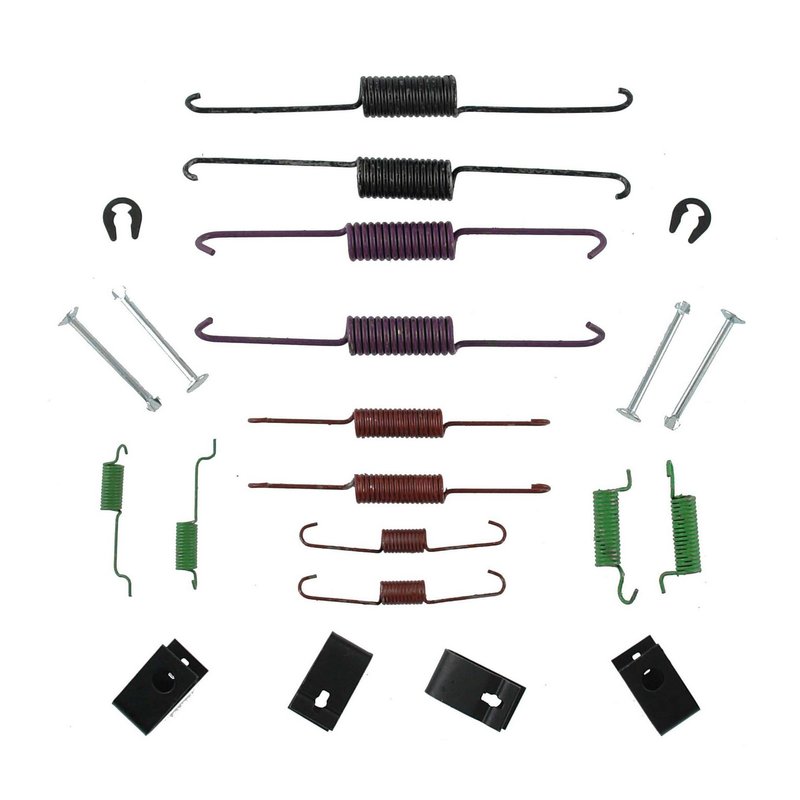

Carlson 17466 Drum Brake Hardware Kit - Rear

OE Quality 60-Day Returns

Carlson 17466 Drum Brake Hardware Kit - Rear

Brand	Carlson 17466
Position	Rear
Fits	Suzuki · 5 vehicles

Brake hardware kit. Includes parts that help restore drum brake system function.

Contains anti-rattle clips, seals, pins, dust boots, springs, and adjuster assemblies.

$27.48Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Drum Brake Hardware Kits are typically replaced in pairs, axle by axle.

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Drum Brake Hardware Kit options

Carlson Rear Drum Brake Hardware Kit for Suzuki XL-7

Carlson 17466 is a rear drum brake hardware kit for 2002-2006 Suzuki XL-7 models with 254 x 54.5mm rear drums and 786 brake configuration. It brings together the service hardware used during drum brake restoration, helping restore consistent shoe movement and brake adjustment on the rear axle.

Key Features

Drum brake hardware kit for rear service applications
Includes a range of brake system service components such as anti-rattle clips, seals, pins, dust boots, return springs, hold down springs, and adjuster assemblies
Built for 2002-2006 Suzuki XL-7 rear drum brake service
Part number 17466 for catalog lookup and ordering
Fits rear brake service work on Suzuki XL-7 models with 254 x 54.5mm drums

Detailed Description

Carlson 17466 is a brake service kit for rear drum brake maintenance on the Suzuki XL-7. It is specified for 2002-2006 Suzuki XL-7 rear applications with 254 x 54.5mm drums and 786 notes, making it a direct fitment reference for rear drum brake hardware service. Use Carlson 17466 when replacing worn brake hardware during a rear drum brake overhaul on the Suzuki XL-7.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

Brake shoe noise from worn anti-rattle hardware
Uneven rear drum brake shoe return action
Weak or inconsistent brake shoe hold-down performance
Sticking or poorly adjusted rear drum brake components
Brake service issues caused by aged seals, pins, or boots

Installation Notes and Tips

Install Carlson 17466 during rear drum brake service on the specified Suzuki XL-7 fitment. Inspect the brake shoes, wheel cylinders, and drum surface before reassembly, and verify that the rear hardware matches the 254 x 54.5mm drum specification and 786 notes listed for the vehicle.

Quality Assurance

Carlson supplies brake service hardware for restoration-focused repairs, and this kit is cataloged for the confirmed rear fitment on 2002-2006 Suzuki XL-7 models.

This part fits 5 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Position	Notes
2006	Suzuki	XL-7	Rear	254 X 54.5mm; 786
2005	Suzuki	XL-7	Rear	254 X 54.5mm; 786
2004	Suzuki	XL-7	Rear	254 X 54.5mm; 786
2003	Suzuki	XL-7	Rear	254 X 54.5mm; 786
2002	Suzuki	XL-7	Rear	254 X 54.5mm; 786
