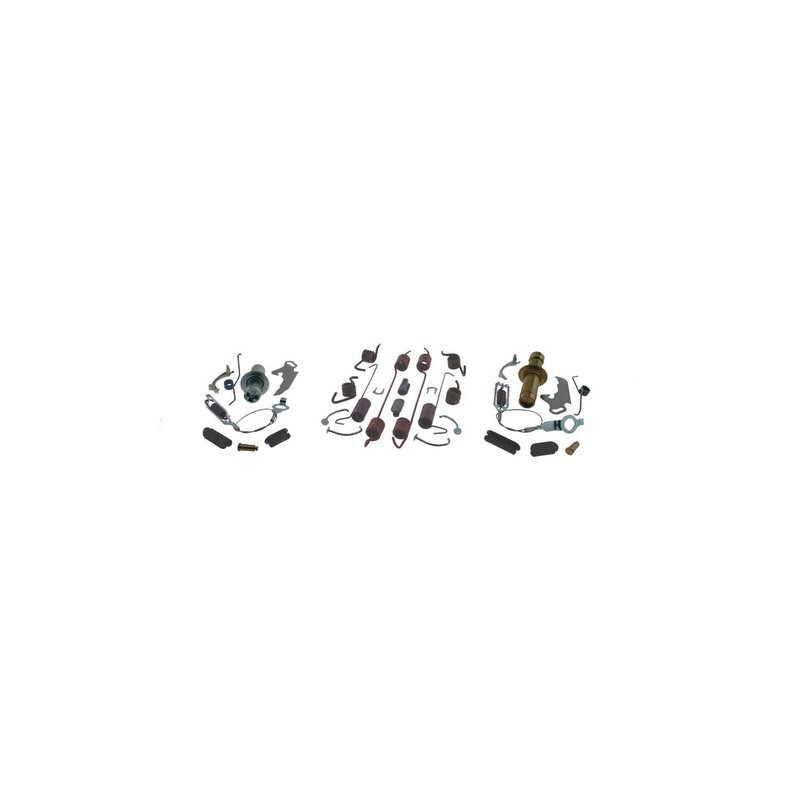

Carlson H2317 Drum Brake Hardware Kit - Rear

Carlson PRO KIT H2317 Drum Brake Hardware Kit

Carlson PRO KIT H2317 is a rear drum brake hardware kit for Ford full-size vans and trucks with listed 12" x 3" or 3" shoe rear drum brake applications. It brings together the service components used to restore brake shoe retention and adjuster function on compatible Ford E-250 Econoline, E-350 Econoline, F-250, F-250 HD, and F-350 models.

Key Features

• Rear drum brake hardware kit for service and restoration work
• Includes components used for anti-rattle control, shoe retention, and adjuster operation
• Designed for Ford rear drum brake applications with 12" x 3" brakes or 3" shoes, where listed
• Fits a wide range of Ford E-250 Econoline, E-350 Econoline, F-250, F-250 HD, and F-350 applications
• Carlson PRO KIT H2317 for rear brake service on selected Ford platforms

Detailed Description

This Carlson PRO KIT H2317 drum brake hardware kit is built for rear brake service on select Ford vehicles. The kit is intended for applications that use drum brake service hardware such as anti-rattle clips, seals, pins, dust boots, return springs, hold down springs, and adjuster assemblies. For buyers searching for a rear drum brake hardware kit for Ford E-250 Econoline or Ford F-350 rear brakes, this part number provides a direct fitment reference for the listed applications.

The PRO KIT line identifies Carlson brake service kits for brake maintenance work where restoring proper shoe control and adjuster operation matters. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Brake shoe noise from worn or loose drum hardware
• Uneven shoe return after brake application
• Weak or inconsistent adjuster operation
• Brake drag caused by fatigued springs or retaining parts
• Service issues during rear drum brake rebuilds on Ford trucks and vans

Installation Notes and Tips

Confirm rear brake size and shoe configuration before ordering. Fitment includes 1976-2002 Ford E-250 Econoline, rear; 1987-1997 Ford F-350, rear with single rear wheels and 314 fitment; 1980-1999 Ford F-250, rear; 1997 Ford F-250 HD, rear; 1987-1994 Ford E-350 Econoline and E-350 Econoline Club Wagon, rear; 1995-2000 Ford E-350 Econoline and E-350 Econoline Club Wagon, rear; and additional listed rear drum brake applications. Match the existing brake setup to the notes shown for each vehicle before installation.

Quality Assurance

Carlson PRO KIT brake service components are cataloged for specific OE-style brake applications and fitment-based replacement use. Part number H2317 is listed for the Ford rear drum brake applications shown above.
