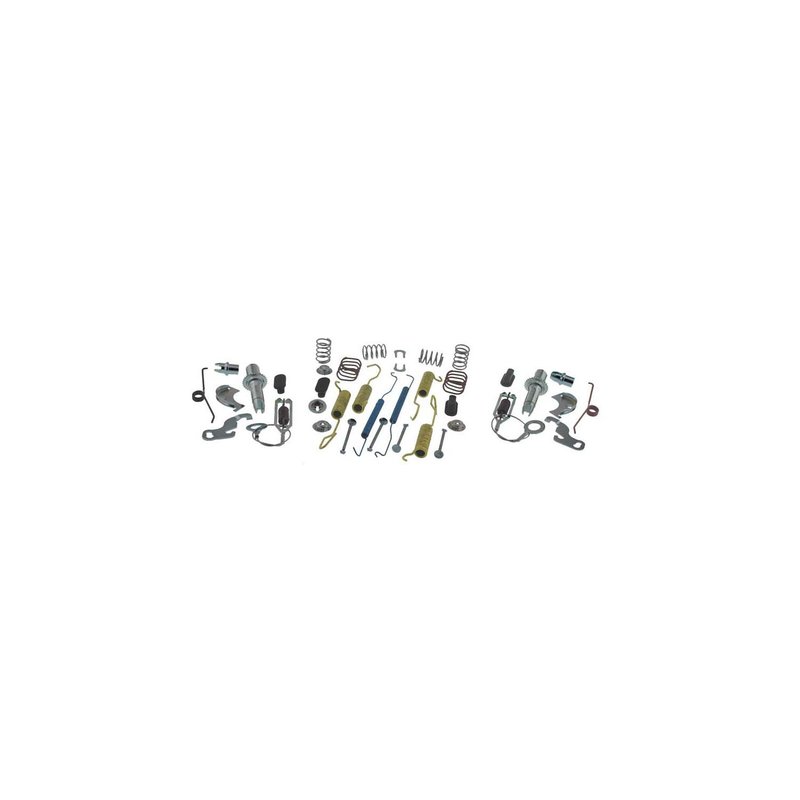

Carlson H2333 Drum Brake Hardware Kit - Rear

Carlson PRO KIT H2333 Drum Brake Hardware Kit

Carlson PRO KIT H2333 is a drum brake hardware kit for rear drum brake service on select Jeep applications. It brings together the small components used to restore brake shoe retention and return action in 10" x 1.75" rear drum setups.

Compatible With 1990-2001 Jeep Cherokee, 1990 Jeep Wagoneer, and 1993-1994 Jeep Grand Cherokee rear drum brake systems listed below.

Key Features

• Drum brake hardware kit for rear service applications
• Supports restoration of brake shoe return spring function and related hardware
• Includes a mix of service parts such as anti-rattle clips, seals, pins, dust boots, hold down springs, adjuster assemblies, and return springs as described by the manufacturer
• Built for 10" x 1.75" rear drum brake configurations
• Carlson PRO KIT H2333 for Jeep rear drum brake maintenance

Detailed Description

The Carlson PRO KIT line focuses on brake service hardware used during drum brake maintenance and restoration. H2333 is specified for rear 10" x 1.75" drum brake applications on Jeep Cherokee, Grand Cherokee, and Wagoneer models listed in the fitment data. This part number, H2333, is intended for vehicles that use the 670 brake configuration noted in the application details.

This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

What It Helps Address

• Brake shoe return issues in rear drum brake assemblies
• Noise from worn or missing drum brake hardware
• Uneven shoe movement caused by fatigued springs or retainers
• Service needs during rear drum brake rebuilds on Jeep Cherokee, Grand Cherokee, and Wagoneer models
• Loss of proper adjuster or hold-down hardware function in 10" rear drums

Installation Notes and Tips

Verify rear drum size and brake configuration before ordering. This H2333 kit is listed for 10" x 1.75" rear drum brake applications, so confirm the existing hardware layout on your Jeep Cherokee, Grand Cherokee, or Wagoneer before disassembly. Compare the removed parts to the new hardware to ensure the correct service match.

Quality Assurance

Carlson PRO KIT brake hardware is cataloged for specific brake service applications and fitment-based replacement use. H2333 is listed for the rear positions shown in the fitment data and should be matched to the vehicle’s drum brake specification before installation.

Fitment

• Fits 1999-2001 Jeep Cherokee, rear
• Fits 1994-1996 Jeep Cherokee, rear
• Fits 1994 Jeep Grand Cherokee, rear
• Fits 1990-1993 Jeep Cherokee, rear
• Fits 1993 Jeep Grand Cherokee, rear
• Fits 1990 Jeep Wagoneer, rear
