Home› Dorman HW17253 Drum Brake Hardware Kit - Rear
Dorman HW17253 Drum Brake Hardware Kit - RearOE Quality 60-Day Returns
Part #: HW17253

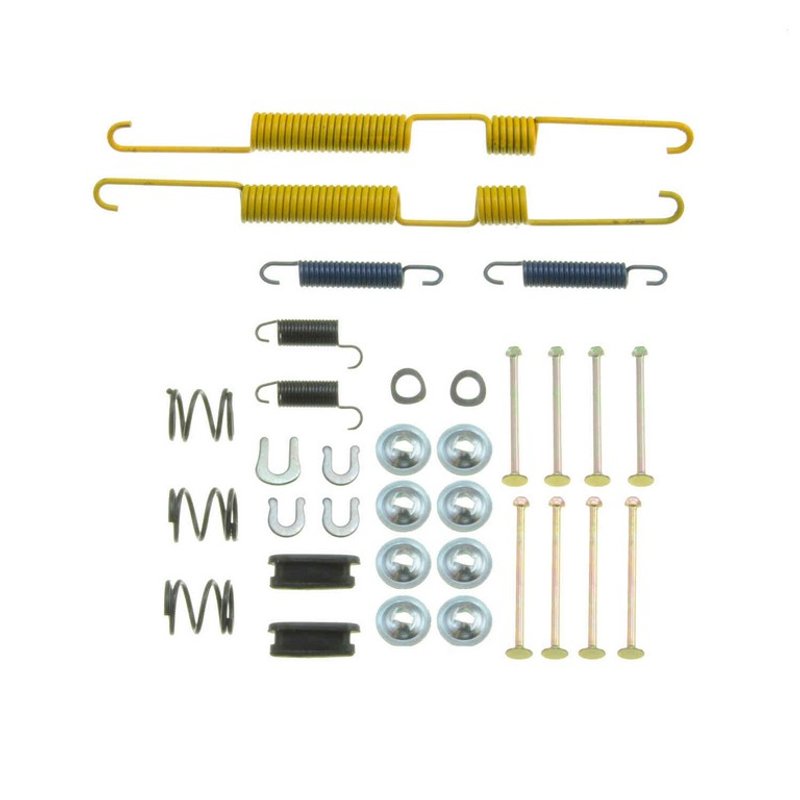

Dorman HW17253 Drum Brake Hardware Kit - Rear

Rear
50 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$25.44Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
Out of Stock
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Toyota, Tacoma, 4Runner, Land Cruiser, and Pickup
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Drum Brake Hardware Kit options

Reliable Drum Brake Hardware Kit for Toyota Vehicles

The Dorman HW17253 drum brake hardware kit is designed specifically for Toyota 4Runner, Land Cruiser, Pickup, and Tacoma models. This kit includes essential components to maintain and restore the proper function of your drum brake system, ensuring consistent braking performance.

  • Compatible with Toyota 4Runner, Land Cruiser, Pickup, and Tacoma
  • Includes hardware matching FMSI numbers 549, 568, 589, and 764
  • Complete drum brake hardware kit for service and repair
  • Part number HW17253 for precise identification
  • GTIN 00082702383476 for inventory and tracking

Comprehensive Drum Brake Hardware Kit Details

This Dorman drum brake hardware kit (part number HW17253) contains all necessary components to replace worn or damaged hardware in the drum brake assemblies of select Toyota models. The kit covers multiple FMSI numbers—549, 568, 589, and 764—ensuring compatibility with various brake shoe configurations found on the 4Runner, Land Cruiser, Pickup, and Tacoma. Proper hardware replacement is critical to maintaining brake shoe alignment, preventing uneven wear, and ensuring safe braking operation.

Applications and Common Issues Addressed

  • Restores proper tension and positioning of drum brake shoes
  • Eliminates brake noise caused by worn or loose hardware
  • Prevents premature brake shoe wear and uneven contact
  • Addresses sticking or dragging brakes due to hardware failure
  • Supports overall brake system reliability and safety

Installation Notes and Tips

When installing the Dorman HW17253 drum brake hardware kit, ensure the vehicle is securely lifted and the drum brake assembly is clean and free of debris. Compare the new hardware components to the old parts to verify correct fitment. Use appropriate tools to avoid damaging springs or clips during installation. It is recommended to replace brake shoes and drums as needed to maintain optimal braking performance.

Quality Assurance and Warranty Information

Dorman provides this drum brake hardware kit with quality standards that meet or exceed OEM specifications for the listed Toyota models. The kit is manufactured to ensure durability and reliable performance under normal operating conditions. Warranty coverage details can be obtained from Dorman directly or through authorized distributors.

BrandDorman
Part NumberHW17253
FMSI Number549
FMSI Number568
FMSI Number589
FMSI Number764
Package Contents1 Drum Brake Hardware Kit

This part fits 50 vehicles. Search below:

YearMakeModelSubmodelDrive TypeLitersCylindersPositionNotes
2004ToyotaTacoma4WDRear295 mm x 50 mm Brakes
2004ToyotaTacomaPre RunnerRWDRear295 mm x 50 mm Brakes
2003ToyotaTacomaPre RunnerRWDRear295 mm x 50 mm Brakes
2002Toyota4RunnerRear295 mm x 50 mm Brakes
2002ToyotaTacomaPre RunnerRWDRear295 mm x 50 mm Brakes
2001Toyota4RunnerRear295 mm x 50 mm Brakes
2001ToyotaTacomaPre RunnerRWDRear295 mm x 50 mm Brakes
2000Toyota4RunnerRear295 mm x 50 mm Brakes
2000ToyotaTacomaPre RunnerRWDRear295 mm x 50 mm Brakes
1999Toyota4RunnerRear295 mm x 50 mm Brakes
1999ToyotaTacomaPre RunnerRWDRear295 mm x 50 mm Brakes
1998Toyota4RunnerRear295 mm x 50 mm Brakes
1998ToyotaTacomaPre RunnerRWDRear295 mm x 50 mm Brakes
1997Toyota4RunnerRear295 mm x 50 mm Brakes
1997ToyotaLand CruiserRear295 mm x 60 mm Brakes
1996Toyota4RunnerRear295 mm x 50 mm Brakes
1996ToyotaLand CruiserRear295 mm x 60 mm Brakes
1995Toyota4RunnerRear295 mm x 50 mm Brakes
1995ToyotaLand CruiserRear295 mm x 60 mm Brakes
1995ToyotaPickup4WDRear295 mm x 50 mm Brakes
1994Toyota4RunnerRear295 mm x 50 mm Brakes
1994ToyotaLand CruiserRear295 mm x 60 mm Brakes
1994ToyotaPickup4WDRear295 mm x 50 mm Brakes
1993Toyota4RunnerRear295 mm x 50 mm Brakes
1993ToyotaLand CruiserRear295 mm x 60 mm Brakes
1993ToyotaPickup4WD3.0LV6Rear295 mm x 50 mm Brakes
1993ToyotaPickup4WD2.4LL4Rear295 mm x 50 mm Brakes
1992Toyota4RunnerRear295 mm x 50 mm Brakes
1992ToyotaLand CruiserRear295 mm x 60 mm Brakes
1992ToyotaPickup4WDRear295 mm x 50 mm Brakes
1991Toyota4RunnerRear295 mm x 50 mm Brakes
1991ToyotaLand CruiserRear295 mm x 60 mm Brakes
1991ToyotaPickup4WD3.0LV6Rear295 mm x 50 mm Brakes
1991ToyotaPickup4WD2.4LL4Rear295 mm x 50 mm Brakes
1990Toyota4RunnerRear295 mm x 50 mm Brakes
1990ToyotaLand CruiserRear295 mm x 50 mm Brakes
1990ToyotaPickup4WD3.0LV6Rear295 mm x 50 mm Brakes
1990ToyotaPickup4WD2.4LL4Rear295 mm x 50 mm Brakes
1989Toyota4RunnerRear295 mm x 50 mm Brakes
1989ToyotaLand CruiserRear295 mm x 50 mm Brakes
1989ToyotaPickup4WD3.0LV6Rear295 mm x 50 mm Brakes
1989ToyotaPickup4WD2.4LL4Rear295 mm x 50 mm Brakes
1988Toyota4RunnerRear295 mm x 50 mm Brakes
1988ToyotaLand CruiserRear295 mm x 50 mm Brakes
1988ToyotaPickup4WDRear11.50 In. x 2.375 In. Brakes
1987Toyota4RunnerRear295 mm x 50 mm Brakes
1987ToyotaLand Cruiser4.2LL6Rear295 mm x 50 mm Brakes; From 8/87
1987ToyotaPickup4WDRear11.50 In. x 2.375 In. Brakes
1986Toyota4RunnerRear295 mm x 50 mm Brakes
1986ToyotaPickup4WDRear11.50 In. x 2.375 In. Brakes

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

084-1042118.44008171831725317253K18K544501725379-22007BK17253F117191H7253H920631HK-2221

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
