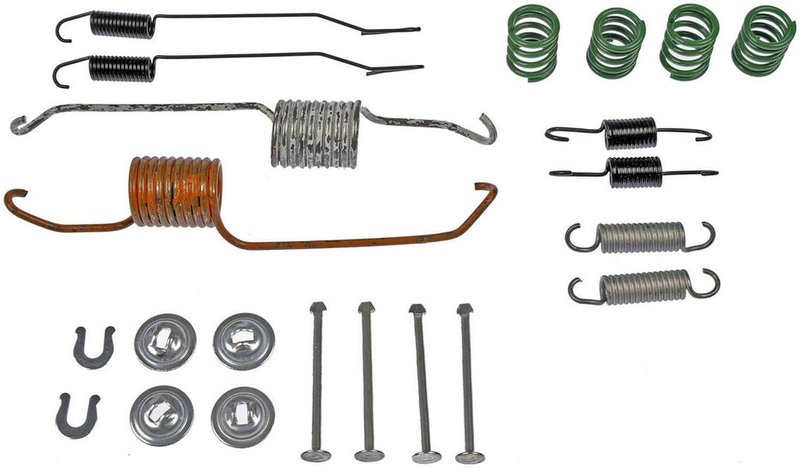

Dorman HW17386 Drum Brake Hardware Kit - Rear
OE Quality 60-Day Returns
Dorman

Dorman HW17386 Drum Brake Hardware Kit - Rear

Brand Dorman HW17386
Position Rear
FMSI Number 587
FMSI Number 804
Package Contents 1 drum brake hardware kit
Fits Toyota · 20 vehicles

OE-style replacement. Matches the original hardware needed for drum brake repair.

Quality components. Engineered for reliable performance and durability.

Complete drum brake hardware kit for service work.

Cross-references Carlson 17386, Centric Parts 118.44026 and Raybestos Brakes H17388 for the same application. See all 5.

$25.68Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Drum Brake Hardware Kits are typically replaced in pairs, axle by axle.
Order total $25.68
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Drum Brake Hardware Kit options

Dorman HW17386 Drum Brake Hardware Kit

Dorman HW17386 is a drum brake hardware kit for rear brake service on select Toyota applications. It is built to match the original hardware required for drum brake repair, using quality components for dependable fit and long-term durability.

Key Features

  • Direct replacement drum brake hardware for rear service
  • Matches original hardware requirements for specified vehicles
  • Quality components selected for reliable performance
  • Fits 2004-2010 Toyota Sienna, rear with 254 mm x 50.5 mm brakes
  • Fits 2000-2002 Toyota Solara, rear with 228.6 mm x 40 mm brakes
  • FMSI numbers 587 and 804

Detailed Description

This Dorman HW17386 drum brake hardware kit is engineered for rear drum brake repair on select Toyota Sienna and Toyota Solara models. It follows the original hardware requirements for the application, helping restore proper brake assembly function during service. This part cross-references Carlson 17386 and Raybestos Brakes H17388 for the same application.

Use Dorman HW17386 when servicing rear drum brakes on a 2004-2010 Toyota Sienna with 254 mm x 50.5 mm brakes or a 2000-2002 Toyota Solara with 228.6 mm x 40 mm brakes. The kit is listed under brake service kits and is identified by part number HW17386.

What It Helps Fix

  • Missing or worn drum brake hardware during brake service
  • Noisy rear brake operation caused by aged hardware
  • Uneven brake shoe return or retention issues
  • Brake assembly reassembly after drum brake maintenance
  • Fitment problems when replacing worn original hardware

Installation Notes and Tips

Confirm rear brake size before ordering and match the vehicle’s drum brake configuration to the listed fitment. Inspect related brake shoes, drums, and wheel cylinders during service, and replace any worn components as needed. Verify the hardware layout against the original assembly before installation.

Quality Assurance

Dorman manufactures this hardware kit as an OE-style replacement built to match the original repair requirements for the listed Toyota applications. The part number HW17386 and the included FMSI references help confirm application accuracy during brake service.

Related reading

This part fits 20 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelLitersCylindersPositionNotes
2010ToyotaSienna———Rear254 mm x 50.5 mm Brakes
2010ToyotaSiennaLE——Rear254 mm x 50.5 mm Brakes
2010ToyotaSiennaCE——Rear254 mm x 50.5 mm Brakes
2009ToyotaSienna———Rear254 mm x 50.5 mm Brakes
2009ToyotaSiennaLE——Rear254 mm x 50.5 mm Brakes
2009ToyotaSiennaCE——Rear254 mm x 50.5 mm Brakes
2008ToyotaSienna—3.5LV6Rear254 mm x 50.5 mm Brakes
2007ToyotaSienna—3.5LV6Rear254 mm x 50.5 mm Brakes
2006ToyotaSienna———Rear254 mm x 50.5 mm Brakes
2005ToyotaSiennaXLE Limited——Rear254 mm x 50.5 mm Brakes
2005ToyotaSiennaLE——Rear254 mm x 50.5 mm Brakes
2005ToyotaSiennaXLE——Rear254 mm x 50.5 mm Brakes
2005ToyotaSiennaCE——Rear254 mm x 50.5 mm Brakes
2004ToyotaSiennaXLE Limited——Rear254 mm x 50.5 mm Brakes
2004ToyotaSiennaLE——Rear254 mm x 50.5 mm Brakes
2004ToyotaSiennaXLE——Rear254 mm x 50.5 mm Brakes
2004ToyotaSiennaCE——Rear254 mm x 50.5 mm Brakes
2002ToyotaSolara———RearDrum Brake Hardware Kit for 228.6 mm x 40 mm brakes.
2001ToyotaSolara———RearDrum Brake Hardware Kit for 228.6 mm x 40 mm brakes.
2000ToyotaSolara———RearDrum Brake Hardware Kit for 228.6 mm x 40 mm brakes.
Directly replaces or cross-references 5 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Carlson — 17386Centric Parts — 118.44026Raybestos Brakes — H1738817509KF140833
