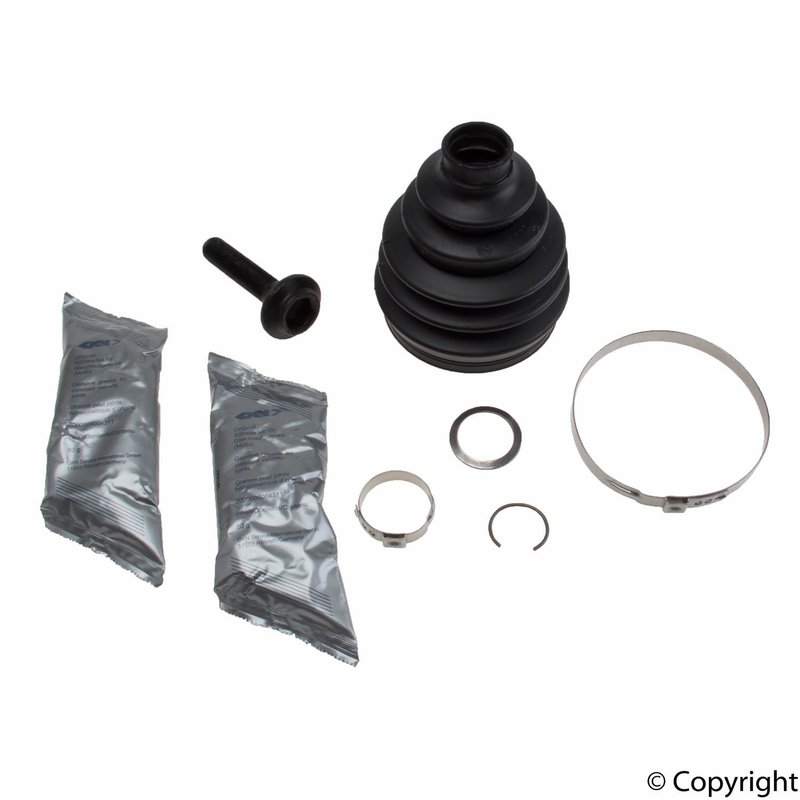

GKN Loebro 304336 CV Joint Boot Kit - Front Left Outer, Front Outer or Front Right Outer
OE Quality 60-Day Returns
GKN Loebro

GKN Loebro 304336 CV Joint Boot Kit - Front Left Outer, Front Outer or Front Right Outer

Brand GKN Loebro 304336
Position Front Right Outer, Front Left Outer, and Front Outer
Joint End Inside Diameter 3.858
Shaft End Inside Diameter 1.102
Rib Quantity 1
Vented Boot No
Boot Color Black
Split Or Solid Type Solid
Thermo Tpe
Fits Audi · 102 vehicles

OE quality TPE boot kit. From GKN Automotive for a precise replacement fit.

TPE material. Withstands heat from high-torque driveline operation.

Solid boot design. Helps protect the joint from torn, slipped, or porous boots.

Cross-references 8E0498203C for the same application. See all 1.

$30.64Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $30.64
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Joint Boot Kit options

OE-Style CV Boot Kit for Audi Front Axles

Restore the outer CV joint seal with this GKN Loebro CV Joint Boot Kit, part number 304336. Built with OE-quality TPE material, it is designed for Audi front right outer and front left outer applications where the original boot has torn, slipped, or become porous.

  • OE-quality TPE thermoplastic elastomer boot for heat resistance up to 240°F
  • Solid black boot with one rib for a precise OE-style profile
  • Joint end inside diameter: 3.858 in.
  • Shaft end inside diameter: 1.102 in.
  • Direct replacement focus for Audi A4, A4 Quattro, S4, and RS4 front outer CV joints
  • Part number 304336 for accurate ordering and service matching

Fitment and Application Details

This GKN Loebro 304336 boot kit is engineered for exact-fit replacement on select Audi driveline applications. It fits 2004-2005 Audi A4 Quattro, front outer; 2004-2005 Audi S4, front outer; 2005-2009 Audi A4, front right outer and front left outer; 2005-2009 Audi A4 Quattro, front right outer and front left outer; 2006-2009 Audi S4, front right outer and front left outer; and 2007-2008 Audi RS4, front right outer and front left outer. It also covers specific VIN-based 2004-2006 Audi A4 and A4 Quattro front outer applications noted in the fitment data. If your original driveshaft uses a TPE boot, matching the replacement material is important for proper service life.

This part cross-references Audi 8E0498203C for the same application.

What This Boot Kit Helps Address

  • Torn outer CV boot on an Audi A4, A4 Quattro, S4, or RS4
  • Grease loss from a split or porous boot
  • Contamination entering the CV joint after boot failure
  • Noise or vibration caused by a damaged outer joint seal
  • Incorrect replacement material when the original boot was TPE

Installation Notes and Tips

Confirm the joint dimensions and vehicle VIN notes before installation, especially on 2004-2006 Audi A4 and A4 Quattro models with VIN-specific coverage. Clean the joint thoroughly before fitting the new boot, and inspect the CV joint for wear or contamination before reassembly. Use the correct replacement boot material when the original axle was equipped with TPE.

Quality Assurance

GKN Automotive supplies OE-quality driveline components, and Loebro boot kits are built to match the fit and material requirements of the original application. Part number 304336 is intended for professional repair work on covered Audi front outer CV joint applications.

Related reading

This part fits 102 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelBody TypeDrive TypeTransmissionLitersCylindersPositionNotes
2009AudiA4ConvertibleFWD—2.0LL4Front Right Outer—
2009AudiA4ConvertibleFWD—2.0LL4Front Left Outer—
2009AudiA4 QuattroConvertibleAWD—3.2LV6Front Right Outer—
2009AudiA4 QuattroConvertibleAWD—3.2LV6Front Left Outer—
2009AudiS4ConvertibleAWD—4.2LV8Front Right Outer—
2009AudiS4ConvertibleAWD—4.2LV8Front Left Outer—
2008AudiA4SedanFWD—3.2LV6Front Right Outer—
2008AudiA4SedanFWD—3.2LV6Front Left Outer—
2008AudiA4SedanFWD—2.0LL4Front Right Outer—
2008AudiA4SedanFWD—2.0LL4Front Left Outer—
2008AudiA4ConvertibleFWD—2.0LL4Front Right Outer—
2008AudiA4ConvertibleFWD—2.0LL4Front Left Outer—
2008AudiA4 QuattroWagonAWD—3.2LV6Front Right Outer—
2008AudiA4 QuattroWagonAWD—3.2LV6Front Left Outer—
2008AudiA4 QuattroSedanAWD—3.2LV6Front Right Outer—
2008AudiA4 QuattroSedanAWD—3.2LV6Front Left Outer—
2008AudiA4 QuattroConvertibleAWD—3.2LV6Front Right Outer—
2008AudiA4 QuattroConvertibleAWD—3.2LV6Front Left Outer—
2008AudiRS4SedanAWD—4.2LV8Front Right Outer—
2008AudiRS4SedanAWD—4.2LV8Front Left Outer—
2008AudiRS4ConvertibleAWD—4.2LV8Front Right Outer—
2008AudiRS4ConvertibleAWD—4.2LV8Front Left Outer—
2008AudiS4WagonAWD—4.2LV8Front Right Outer—
2008AudiS4WagonAWD—4.2LV8Front Left Outer—
2008AudiS4SedanAWD—4.2LV8Front Right Outer—
2008AudiS4SedanAWD—4.2LV8Front Left Outer—
2008AudiS4ConvertibleAWD—4.2LV8Front Right Outer—
2008AudiS4ConvertibleAWD—4.2LV8Front Left Outer—
2007AudiA4SedanFWD—3.2LV6Front Right Outer—
2007AudiA4SedanFWD—3.2LV6Front Left Outer—
2007AudiA4SedanFWD—2.0LL4Front Right Outer—
2007AudiA4SedanFWD—2.0LL4Front Left Outer—
2007AudiA4ConvertibleFWD—2.0LL4Front Right Outer—
2007AudiA4ConvertibleFWD—2.0LL4Front Left Outer—
2007AudiA4 QuattroWagonAWD—3.2LV6Front Right Outer—
2007AudiA4 QuattroWagonAWD—3.2LV6Front Left Outer—
2007AudiA4 QuattroSedanAWD—3.2LV6Front Right Outer—
2007AudiA4 QuattroSedanAWD—3.2LV6Front Left Outer—
2007AudiA4 QuattroConvertibleAWD—3.2LV6Front Right Outer—
2007AudiA4 QuattroConvertibleAWD—3.2LV6Front Left Outer—
2007AudiRS4—AWD—4.2LV8Front Right Outer—
2007AudiRS4—AWD—4.2LV8Front Left Outer—
2007AudiS4WagonAWD—4.2LV8Front Right Outer—
2007AudiS4WagonAWD—4.2LV8Front Left Outer—
2007AudiS4SedanAWD—4.2LV8Front Right Outer—
2007AudiS4SedanAWD—4.2LV8Front Left Outer—
2007AudiS4ConvertibleAWD—4.2LV8Front Right Outer—
2007AudiS4ConvertibleAWD—4.2LV8Front Left Outer—
2006AudiA4SedanFWD—3.2LV6Front Right Outer—
2006AudiA4SedanFWD—3.2LV6Front Left Outer—
2006AudiA4SedanFWD—2.0LL4Front Right Outer—
2006AudiA4SedanFWD—2.0LL4Front Left Outer—
2006AudiA4ConvertibleFWD—1.8LL4Front Right Outer—
2006AudiA4ConvertibleFWD—1.8LL4Front Left Outer—
2006AudiA4 Quattro—AWD—3.2LV6Front Right Outer—
2006AudiA4 Quattro—AWD—3.2LV6Front Left Outer—
2006AudiA4 QuattroConvertibleAWD—3.0LV6Front Right OuterFitment note: Fits vehicles with VIN starting with 8H-4-014 951.
2006AudiA4 QuattroConvertibleAWD—3.0LV6Front Left OuterFitment note: Fits vehicles with VIN starting with 8H-4-014 951.
2006AudiS4—AWD—4.2LV8Front Right Outer—
2006AudiS4—AWD—4.2LV8Front Left Outer—
2005AudiA4SedanFWD—3.0LV6Front Right OuterFrom vin 8E-4-195 501
2005AudiA4SedanFWD—3.0LV6Front Left OuterFrom vin 8E-4-195 501
2005AudiA4ConvertibleFWD—3.0LV6Front Right OuterFitment note: Fits vehicles with VIN starting with 8H-4-014 951.
2005AudiA4ConvertibleFWD—3.0LV6Front Left OuterFitment note: Fits vehicles with VIN starting with 8H-4-014 951.
2005AudiA4SedanFWD—2.0LL4Front Right Outer—
2005AudiA4SedanFWD—2.0LL4Front Left Outer—
2005AudiA4WagonFWD—1.8LL4Front Right OuterFrom vin 8E-4-195 501
2005AudiA4WagonFWD—1.8LL4Front Right OuterFrom vin 8E-4-000 001
2005AudiA4WagonFWD—1.8LL4Front Left OuterFrom vin 8E-4-195 501
2005AudiA4WagonFWD—1.8LL4Front Left OuterFrom vin 8E-4-000 001
2005AudiA4SedanFWD—1.8LL4Front Right OuterFrom vin 8E-4-195 501
2005AudiA4SedanFWD—1.8LL4Front Right OuterFrom vin 8E-4-000 001
2005AudiA4SedanFWD—1.8LL4Front Left OuterFrom vin 8E-4-195 501
2005AudiA4SedanFWD—1.8LL4Front Left OuterFrom vin 8E-4-000 001
2005AudiA4ConvertibleFWD—1.8LL4Front Right OuterFitment note: Fits vehicles with VIN starting with 8H-4-014 951.
2005AudiA4ConvertibleFWD—1.8LL4Front Left OuterFitment note: Fits vehicles with VIN starting with 8H-4-014 951.
2005AudiA4 Quattro—AWD—3.2LV6Front Right Outer—
2005AudiA4 Quattro—AWD—3.2LV6Front Left Outer—
2005AudiA4 Quattro—AWD—3.0LV6Front Outer—
2005AudiA4 Quattro—AWDAutomatic1.8LL4Front Right OuterFrom vin 8E-4-195 501
2005AudiA4 Quattro—AWDAutomatic1.8LL4Front Left OuterFrom vin 8E-4-195 501
2005AudiS4—AWD—4.2LV8Front Outer—
2004AudiA4WagonFWD—3.0LV6Front Right OuterFrom vin 8E-4-195 501
2004AudiA4WagonFWD—3.0LV6Front Left OuterFrom vin 8E-4-195 501
2004AudiA4SedanFWD—3.0LV6Front Right OuterFrom vin 8E-4-195 501
2004AudiA4SedanFWD—3.0LV6Front Left OuterFrom vin 8E-4-195 501
2004AudiA4ConvertibleFWD—3.0LV6Front Right OuterFitment note: Fits vehicles with VIN starting with 8H-4-014 951.
2004AudiA4ConvertibleFWD—3.0LV6Front Left OuterFitment note: Fits vehicles with VIN starting with 8H-4-014 951.
2004AudiA4WagonFWD—1.8LL4Front Right OuterFrom vin 8E-4-195 501
2004AudiA4WagonFWD—1.8LL4Front Right OuterFrom vin 8E-4-000 001
2004AudiA4WagonFWD—1.8LL4Front Left OuterFrom vin 8E-4-195 501
2004AudiA4WagonFWD—1.8LL4Front Left OuterFrom vin 8E-4-000 001
2004AudiA4SedanFWD—1.8LL4Front Right OuterFrom vin 8E-4-195 501
2004AudiA4SedanFWD—1.8LL4Front Right OuterFrom vin 8E-4-000 001
2004AudiA4SedanFWD—1.8LL4Front Left OuterFrom vin 8E-4-195 501
2004AudiA4SedanFWD—1.8LL4Front Left OuterFrom vin 8E-4-000 001
2004AudiA4ConvertibleFWD—1.8LL4Front Right OuterFitment note: Fits vehicles with VIN starting with 8H-4-014 951.
2004AudiA4ConvertibleFWD—1.8LL4Front Left OuterFitment note: Fits vehicles with VIN starting with 8H-4-014 951.
2004AudiA4 Quattro—AWD—3.0LV6Front OuterTPE boot Ø98mm with screw M16x1,5x77
2004AudiA4 Quattro—AWDAutomatic1.8LL4Front Right OuterFrom vin 8E-4-195 501; From Vin 8E-2-000 001; To Vin 8E-5-400 000
2004AudiA4 Quattro—AWDAutomatic1.8LL4Front Left OuterFrom vin 8E-4-195 501; From Vin 8E-2-000 001; To Vin 8E-5-400 000
2004AudiS4—AWD—4.2LV8Front Outer—
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
8E0498203C
