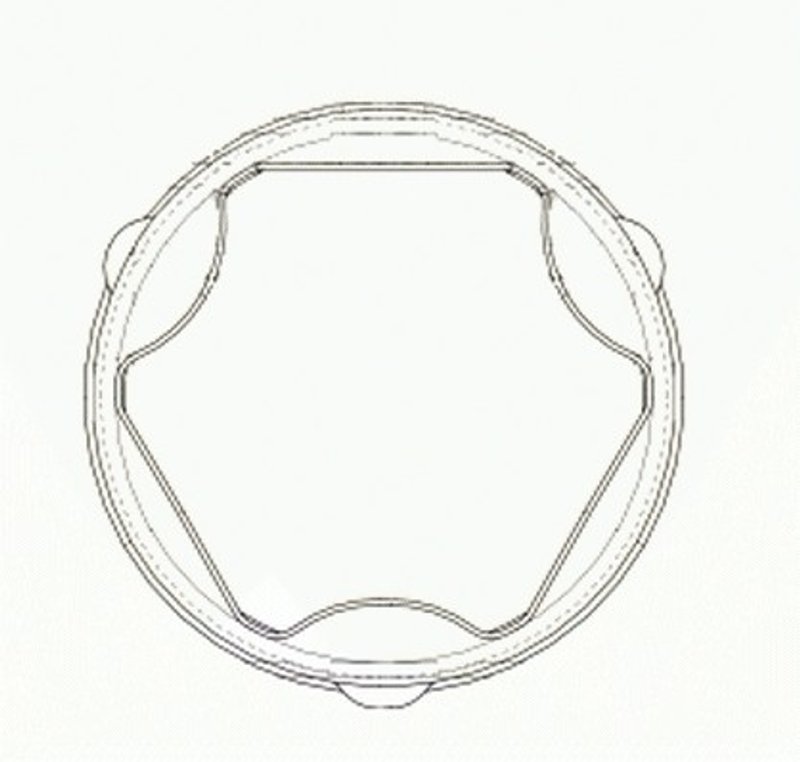

GKN Loebro 306833 CV Joint Boot Kit

OE-Quality CV Boot Kit for Volvo AWD Applications

GKN Loebro 306833 is a premium OE-quality CV joint boot kit built for specific Volvo AWD driveline applications. It is designed to match the joint and shaft dimensions closely, helping protect the CV joint from contamination and grease loss on Volvo S60, S60 Cross Country, V60, V60 Cross Country, XC60, XC70, XC80, S80, and V70 fitments listed below.

• GKN Loebro CV Joint Boot Kit for precise OE-style replacement
• Rubber boot construction with a solid, black design
• Joint end inside diameter: 2.775 in.
• Shaft end inside diameter: 1.003 in.
• Rib quantity: 1
• Vented boot: No
• Part number: 306833

Fitment Details

This boot kit is specified for Volvo AWD driveline applications with the transmission and chassis notes shown in the fitment data. It is a direct-match service part for inner CV joint repair where the original boot has torn, slipped, or become porous. This part cross-references Genu 30759411 and 6G9N4A084BA for the same application.

• Fits 2011-2016 Volvo S60, front right inner; TF-80SC AWD and TF-80SD AWD transmission models.
• Fits 2011-2016 Volvo S60, front left inner; TF-80SC AWD and TF-80SD AWD transmission models.
• Fits 2016 Volvo S60 Cross Country, front right inner; TF-80SC AWD and TF-80SD AWD transmission models.
• Fits 2016 Volvo S60 Cross Country, front left inner; TF-80SC AWD and TF-80SD AWD transmission models.
• Fits 2015-2016 Volvo V60, front right inner; TF-80SC AWD and TF-80SD AWD transmission models.
• Fits 2015-2016 Volvo V60, front left inner; TF-80SC AWD and TF-80SD AWD transmission models.
• Fits 2015-2016 Volvo V60 Cross Country, front right inner; TF-80SC AWD and TF-80SD AWD transmission models.
• Fits 2015-2016 Volvo V60 Cross Country, front left inner; TF-80SC AWD and TF-80SD AWD transmission models.
• Fits 2010-2016 Volvo XC60, front right inner; TF-80SC AWD and TF-80SD AWD transmission models.
• Fits 2010-2016 Volvo XC60, front left inner; TF-80SC AWD and TF-80SD AWD transmission models.
• Fits 2008-2015 Volvo S80, front right inner; TF-80SC AWD and TF-80SD AWD transmission models.
• Fits 2008-2015 Volvo S80, front left inner; TF-80SC AWD and TF-80SD AWD transmission models.
• Fits 2015 Volvo XC70, rear right inner; transmission manufacturer code TF-80SC AWD.
• Fits 2008-2010 Volvo XC70, rear right inner; transmission manufacturer code TF-80SC AWD.
• Fits 2015 Volvo XC70, rear left inner; transmission manufacturer code TF-80SC AWD.
• Fits 2008-2010 Volvo XC70, rear left inner; transmission manufacturer code TF-80SC AWD.
• Fits 2015 Volvo XC70, front right inner; transmission manufacturer code TF-80SC AWD.
• Fits 2008-2010 Volvo XC70, front right inner; transmission manufacturer code TF-80SC AWD.
• Fits 2015 Volvo XC70, front left inner; transmission manufacturer code TF-80SC AWD.
• Fits 2008-2010 Volvo XC70, front left inner; transmission manufacturer code TF-80SC AWD.
• Fits 2012-2014 Volvo S60, front right inner; FC 21, CH 310105-; FC 22, CH 310124-; FC 21, CH 207358-; FC 22, CH 207120-.
• Fits 2012-2014 Volvo S60, front right inner; CH 199773-.
• Fits 2012-2014 Volvo S60, front left inner; FC 21, CH 310105-; FC 22, CH 310124-; FC 21, CH 207358-; FC 22, CH 207120-; CH 218431-.
• Fits 2012-2014 Volvo S60, front left inner; CH 199773-; CH 128940-.
• Fits 2013-2014 Volvo S60, rear right inner; FC 21, CH 310105-; FC 22, CH 310124-; FC 21, CH 207358-; FC 22, CH 207120-.
• Fits 2013-2014 Volvo S60, rear right inner; CH 199773-.
• Fits 2013-2014 Volvo S60, rear left inner; FC 21, CH 310105-; FC 22, CH 310124-; FC 21, CH 207358-; FC 22, CH 207120-; CH 218431-.
• Fits 2013-2014 Volvo S60, rear left inner; CH 199773-; CH 128940-.
• Fits 2007-2014 Volvo S80, front right inner; CH 303825-, CH 213773-, CH -167100, CH 151340-, CH -134100.
• Fits 2007-2014 Volvo S80, front left inner; CH 303825-, CH 270488-, CH 171776-.
• Fits 2010-2014 Volvo XC60, front right inner; CH 303825-, CH 213773-, CH -167100, CH 151340-, CH -134100.
• Fits 2010-2014 Volvo XC60, front left inner; CH 303825-, CH 270488-, CH 171776-.
• Fits 2010-2014 Volvo XC60, rear right inner; CH 303825-, CH 213773-, CH -167100, CH 151340-, CH -134100.
• Fits 2010-2014 Volvo XC60, rear left inner; CH 303825-, CH 270488-, CH 171776-.
• Fits 2011-2014 Volvo XC70, front inner.
• Fits 2011-2014 Volvo XC70, rear inner.
• Fits 2008-2010 Volvo V70, front right inner; CH 303825-, CH 213773-, CH -167100, CH 151340-, CH -134100.
• Fits 2008-2010 Volvo V70, front left inner; CH 303825-, CH 270488-, CH 171776-.
• Fits 2007-2008 Volvo S80, front right inner; transmission manufacturer code TF-80SC AWD.
• Fits 2007-2008 Volvo S80, front left inner; transmission manufacturer code TF-80SC AWD.

Common Repair Uses

• Replacing a torn CV boot on a Volvo AWD inner joint
• Restoring grease retention after a slipped or porous boot
• Protecting the CV joint from road debris and moisture
• Addressing clicking or vibration caused by contaminated driveline components
• Servicing inner CV joint boots on Volvo S60, XC60, XC70, and S80 applications

Installation Notes

Confirm the joint end and shaft end dimensions before installation, and match the original boot material when the vehicle was equipped with a TPE-style boot. GKN Loebro 306833 is a solid rubber boot, so verify the original application details, transmission code, and chassis notes before service. Proper cleaning of the joint and correct clamp positioning are important for a durable repair on Volvo S60 and XC60 AWD driveline systems.

Quality Assurance

GKN Loebro supplies OE-quality driveline components from a global drive systems manufacturer. This boot kit is built to the dimensional and material requirements needed for professional CV joint repair, with attention to exact fit for the specified Volvo applications.
