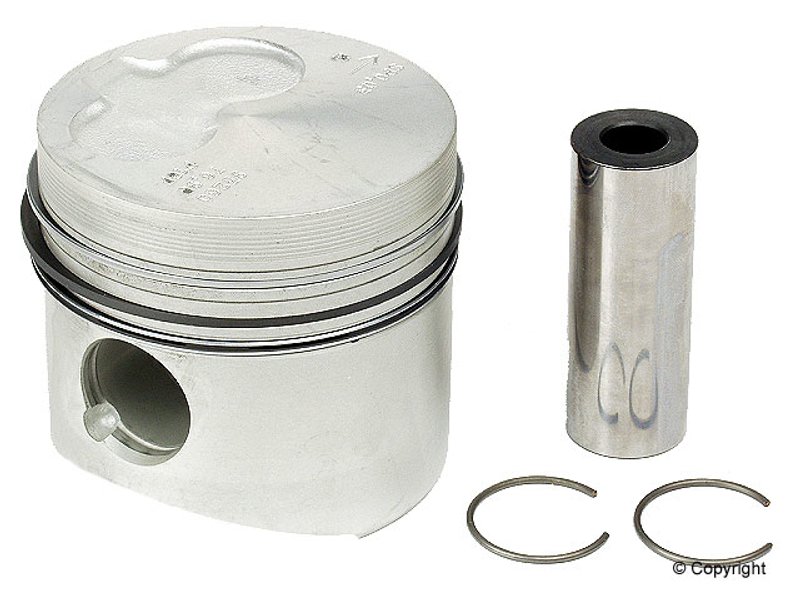

Kolbenschmidt 93260610 Engine Piston

Kolbenschmidt Engine Piston 93260610

Kolbenschmidt engine piston 93260610 is a precision replacement piston for select Volkswagen and Audi applications. Built around a 77.01 mm cylinder bore with a 41.7 mm compression height, it is specified for accurate cylinder sealing and consistent combustion geometry in compatible engines.

Key Features

• Part number: 93260610
• Brand: Kolbenschmidt
• Engine piston for cylinder block component service
• 77.01 mm cylinder bore
• 41.7 mm compression height
• 71.7 mm length
• 0.03 mm piston clearance
• 0.50 repair stage
• Valve pocket depth: 1.6 mm
• Recess depth: 1.6 mm
• Inmetro certified

Detailed Description

This Kolbenschmidt piston, part number 93260610, is engineered for applications that require the listed bore, compression height, and clearance dimensions. The piston includes component references 20830, 32919, and 39239, and it cross-references OE-style numbers such as 068 107 081 AH and 069 107 081 E for the same application. Use this piston when servicing engines in Volkswagen Golf, Volkswagen Jetta, Volkswagen Vanagon, Audi 4000, and Volkswagen Rabbit Pickup applications that match the published specifications.

Fitment language for search: Fits 1985-1987 Volkswagen Golf, N/A; Fits 1989-1992 Volkswagen Golf, N/A; Fits 1981-1986 Volkswagen Jetta, N/A; Fits 1989-1991 Volkswagen Jetta, N/A; Fits 1982-1984 Volkswagen Vanagon, N/A; Fits 1982-1983 Audi 4000, N/A; Fits 1981-1983 Volkswagen Rabbit Pickup, N/A.

What It Helps Address

• Worn or damaged piston surfaces during engine rebuilds
• Loss of compression from piston wear or cylinder mismatch
• Incorrect piston-to-bore fit in repair-stage service
• Valve pocket or recess dimension requirements in matched engine builds
• Replacement needs for select Volkswagen and Audi engine applications

Installation Notes and Tips

Verify cylinder bore, compression height, piston clearance, and repair stage before installation. Confirm the engine code and compare the original piston and OE reference numbers to the published dimensions. Because this piston is specified by exact measurements, proper machine work and measurement checks are important before final assembly. For Volkswagen Golf, Volkswagen Jetta, and Audi 4000 engine service, match the piston to the cylinder condition and the intended rebuild specification.

Quality Assurance

Kolbenschmidt is a recognized engine component manufacturer, and this piston is Inmetro certified. Always confirm all dimensions and application details against the engine being serviced before assembly.
