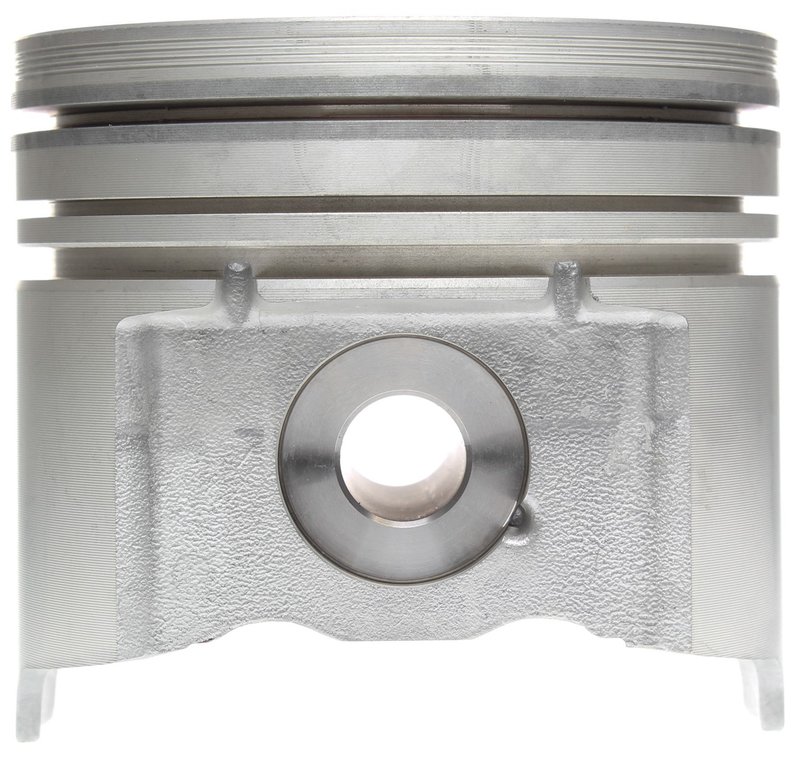

Mahle S224-2897.020 Engine Piston

OE-Style Oversized Piston for GM V8 Rebuilds

This Mahle oversized engine piston is built for precision rebuild work where correct ring control, clearances, and combustion chamber shape matter. It is a direct-fit service part for a wide range of Chevrolet and GMC trucks, vans, and SUVs, including Chevrolet C2500, GMC K2500, and Hummer H1 applications.

Key Features

• Mahle OE-quality engine piston for cylinder block service
• Oversized 0.020 in. design for properly machined rebuilds
• Aluminium construction for controlled expansion and stable fitment
• Ricardo bowl piston head profile
• Compensated ring grooves for ring loading and oil control
• 31.00 mm piston pin outside diameter
• Top compression ring thickness: 3.00 mm
• Second compression ring thickness: 2.00 mm
• Oil ring thickness: 4.00 mm

Detailed Description

Mahle Part Number S224-2897.020 is an oversized engine piston engineered to OE standards for rebuilds that require accurate bore matching and dependable sealing. The expansion-controlled aluminium design helps maintain small fitting clearances, which supports quieter operation, reduced wear, and improved oil control. The Ricardo bowl piston head is suited to diesel combustion chamber requirements, while the compensated ring grooves help maintain proper ring loading during operation. This part cross-references General Motors 12550062 for the same application.

Compatible With 1992-2004 Chevrolet and GMC truck, van, and SUV platforms, this piston is used in applications such as Chevrolet Express 2500, GMC Savana 3500, Chevrolet K3500, GMC C2500 Suburban, and Hummer H1. The part number S224-2897.020 is also a useful reference when ordering for GM engine rebuilds that require a 0.020 in. oversize piston.

What This Piston Helps Address

• Excessive cylinder wear that requires an oversized rebuild piston
• Oil control issues related to worn ring grooves or poor ring sealing
• Combustion sealing concerns in high-mileage GM engines
• Noise and clearance problems caused by improper piston fit
• Rebuild needs for worn Chevrolet, GMC, and Hummer engine blocks

Installation Notes and Tips

• Fits 2002-2004 Hummer H1, N/A; Size 0.020in; Piston w/o Rings; Skirt Non-Coated; Compression Standard; Use Ring # 41718.020
• Fits 1996-2002 Chevrolet Express 2500, N/A; Size 0.020in; Piston w/o Rings; Skirt Non-Coated; Compression Standard; Use Ring # 41718.020
• Fits 1996-2002 GMC Savana 3500, N/A; Size 0.020in; Piston w/o Rings; Skirt Non-Coated; Compression Standard; Use Ring # 41718.020
• Fits 1992-2000 Chevrolet C2500, N/A; Size 0.020in; Piston w/o Rings; Skirt Non-Coated; Compression Standard; Use Ring # 41718.020
• Fits 1995-1999 Chevrolet Tahoe, N/A; Size 0.020in; Piston w/o Rings; Skirt Non-Coated; Compression Standard; Use Ring # 41718.020
• Fits 1994-1997 GMC Yukon, N/A; Size 0.020in; Piston w/o Rings; Skirt Non-Coated; Compression Standard; Use Ring # 41718.020

Confirm bore size, ring selection, and piston-to-wall clearance before assembly. Match the piston to the correct machined cylinder dimensions and verify the application against the engine build sheet.

Quality Assurance

Mahle is a major OE piston manufacturer, and this piston follows OE-style engineering principles for fit, ring control, and expansion management. The design supports rebuild consistency across GM truck, van, and SUV applications from 1992-2004.
