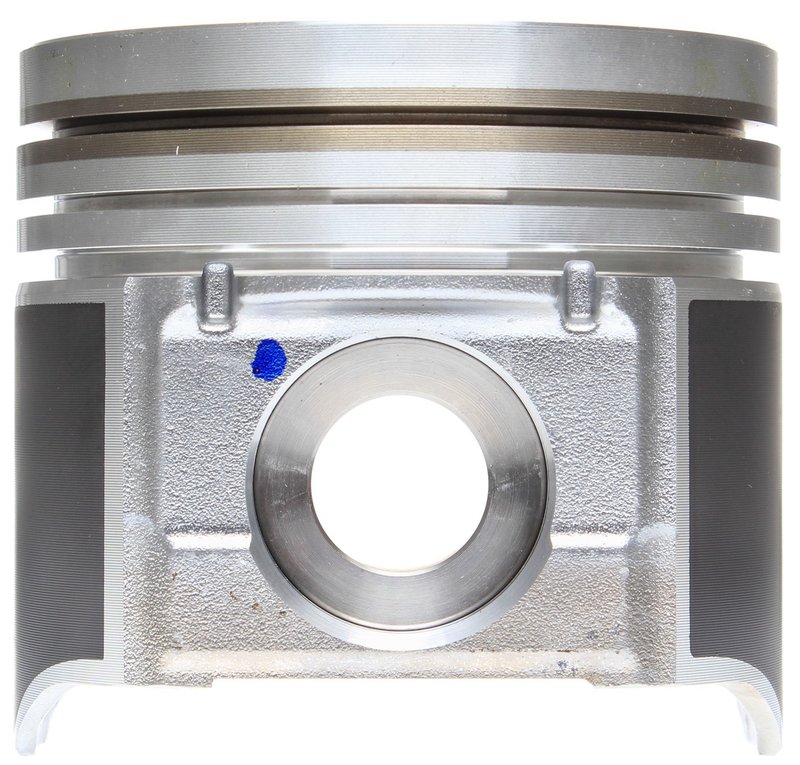

Mahle S224-3503 Engine Piston

OE-Style Piston for Ford Super Duty Applications

The Mahle S224-3503 engine piston is built for OE-style service in select Ford diesel applications. It uses an aluminum construction with a bowl-shaped piston head, compensated ring grooves, and expansion-controlled design to support proper ring loading, oil control, and consistent fitment.

Compatible with 2003-2010 Ford Excursion, E-350 Club Wagon, E-350 Super Duty, F-250 Super Duty, and F-350 Super Duty applications that call for this standard-size piston specification.

• Aluminum piston construction
• Bowl-type piston head
• Top compression ring thickness: 2.30
• Second compression ring thickness: 2.00
• Oil ring thickness: 3.44
• Piston pin outside diameter: 34.01
• Standard size; not oversized
• Skirt coated for reduced friction characteristics
• Sold as a single piston

Detailed Product Overview

Mahle S224-3503 is an OE-quality replacement piston engineered to match the fit and function expected in Ford diesel engine rebuilds. The compensated ring groove design helps maintain proper ring loading and oil control, while the expansion-controlled piston profile supports tighter fitting clearances that can reduce noise, wear, and emissions. The bowl head design is suited to the original combustion chamber configuration used in these applications. This part cross-references Ford 1843285C2 for the same application.

Use this piston when servicing Ford E-350 Super Duty, F-250 Super Duty, F-350 Super Duty, E-350 Club Wagon, or Excursion engines that require the listed standard piston dimensions and ring specifications. The Mahle S224-3503 part number is commonly searched for Ford diesel rebuild work where OE-style piston geometry matters.

Common Repair Applications

• Restoring compression loss caused by worn piston skirts or ring lands
• Addressing excessive oil consumption linked to ring sealing issues
• Repairing piston damage from heat, detonation, or cylinder wear
• Correcting engine noise related to improper piston-to-cylinder clearance
• Supporting a rebuild when the original Ford piston specification is required

Installation Notes and Tips

Verify cylinder bore condition, ring selection, and piston-to-wall clearance before assembly. This piston is standard size and is not oversized, so it should be matched to the correct bore specification during engine machining and inspection. Confirm the required ring set for the application before installation, and compare the original part number and engine build details to ensure proper fit.

For Ford E-350 Super Duty, F-250 Super Duty, F-350 Super Duty, and Excursion rebuilds, confirm that the piston head style, pin diameter, and ring thickness match the engine’s service requirements before final assembly.

Quality Assurance

Mahle is a major OE piston manufacturer, and this piston is produced to OE-quality standards with features intended to match original engine performance requirements. The design focuses on controlled expansion, ring groove accuracy, and oil control characteristics used in factory-style engine service.
