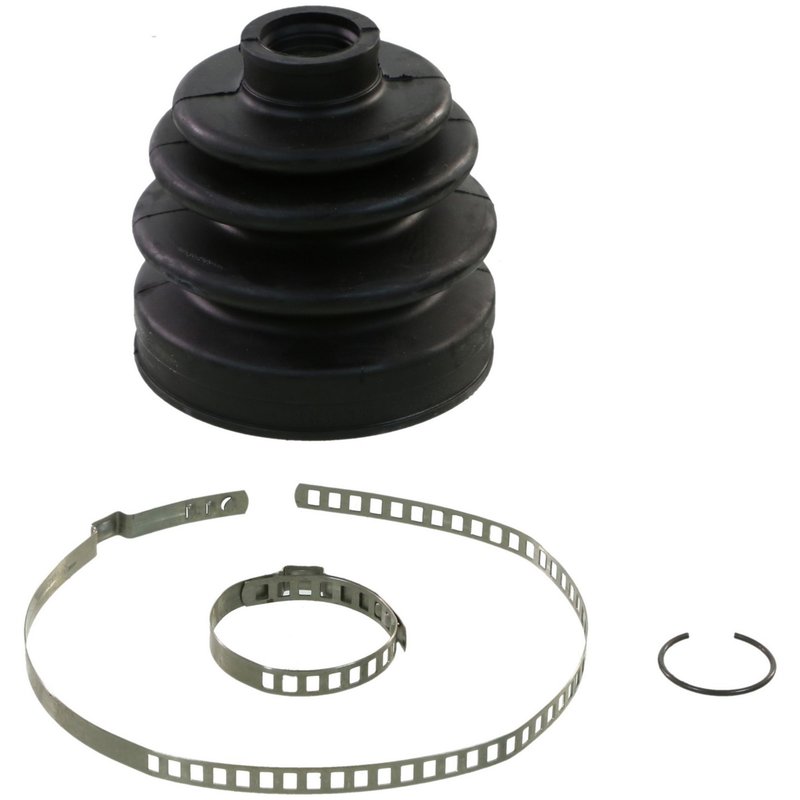

Moog 9406 CV Joint Boot Kit - Front Outer

CV Boot Kit for Nissan Sentra

The Moog 9406 CV joint boot kit is built for the front outer position on select 2000-2001 Nissan Sentra models. It uses neoprene construction and a 4-rib design to help protect the CV joint from dirt, moisture, and road debris while maintaining a secure seal.

Key Features

• Fits 2000-2001 Nissan Sentra, front outer
• Neoprene material for flexible, durable boot performance
• 4-rib design for controlled movement at the joint
• Large end ID: 3.18 inches
• Small end ID: 0.90 inches
• Length: 3.66 inches
• Moog part number 9406

Detailed Description

Moog 9406 is a CV joint boot kit for the front outer CV joint on 2000-2001 Nissan Sentra applications. The neoprene boot is sized with a 3.18-inch large end inside diameter, a 0.90-inch small end inside diameter, and a 3.66-inch length to match the specified application. Moog part number 9406 reflects the brand’s focus on design updates that improve serviceability and help extend component life. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Cracked or split CV boot material
• Grease leakage around the front outer CV joint
• Contamination from water, dirt, and road debris
• Noise caused by a worn or unprotected CV joint
• Premature CV joint wear on a Nissan Sentra

Installation Notes and Tips

Verify front outer fitment before installation on your 2000-2001 Nissan Sentra. Inspect the CV joint for wear or contamination before replacing the boot, and confirm the boot dimensions match the axle and joint dimensions listed for Moog 9406. Clean the joint area thoroughly so the new boot can seal properly.

Quality Assurance

Moog is known for ongoing design improvements that simplify replacement and support longer service life in chassis and driveline applications. Part number 9406 is built to meet the specified fitment and dimensional requirements for the listed Nissan Sentra applications.
