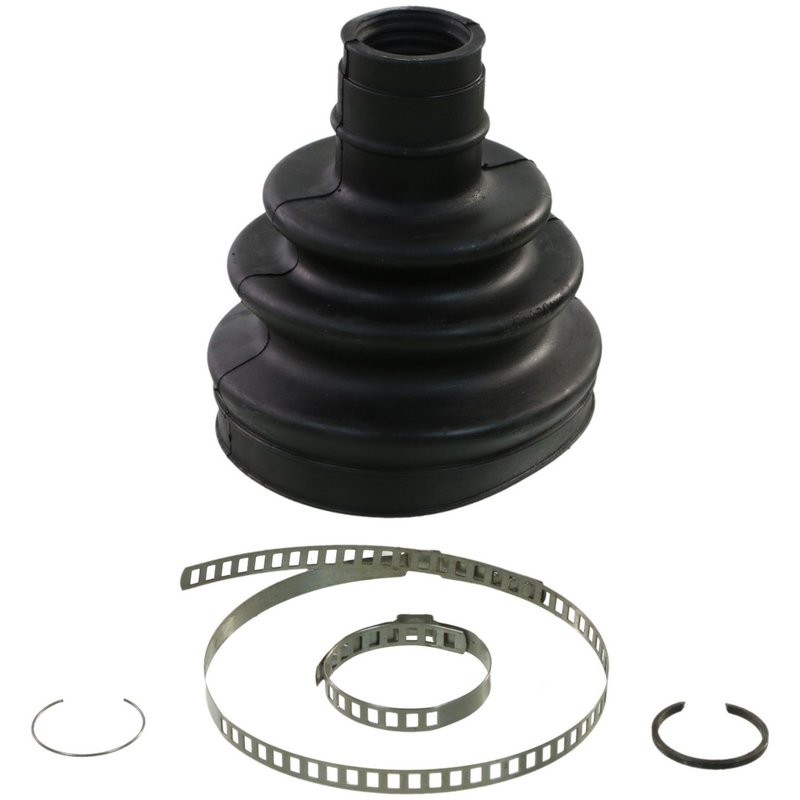

Moog 9461 CV Joint Boot Kit - Front Inner

Moog 9461 CV Joint Boot Kit

Moog 9461 is a neoprene CV joint boot kit for front inner applications on select Chevrolet and GMC trucks and SUVs. It is built around a 6-rib boot profile with measured dimensions that support a precise service replacement for worn or damaged CV boots.

Key Features

• Neoprene construction for flexible, serviceable CV boot replacement
• Large end inside diameter: 3.87 inches
• Small end inside diameter: 1.14 inches
• Boot length: 5.05 inches
• 6-rib design for controlled boot articulation
• Front inner position application

Detailed Description

Moog 9461 is a CV joint boot kit engineered for front inner driveline service on 1988-1997 Chevrolet K1500, 1992-1997 Chevrolet K1500 Suburban, 1995-1997 Chevrolet Tahoe, 1988-1997 GMC K1500, 1992-1997 GMC K1500 Suburban, and 1992-1997 GMC Yukon. It also covers select Chevrolet and GMC K2500 and Chevrolet Blazer applications listed for the same front inner position. The neoprene material and ribbed profile are specified to match the dimensional requirements of the axle boot location while supporting routine CV joint maintenance.

Moog is known for continual design updates that improve service life and make replacement easier. For buyers searching for a Moog 9461 CV boot kit, this part number is a direct match for front inner service on the listed Chevrolet K1500, GMC K1500, and related applications.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Is Used For

• Replacing a torn or cracked front inner CV boot
• Restoring grease retention around the CV joint
• Addressing boot leakage that can lead to joint contamination
• Servicing driveline noise caused by worn boot protection
• Maintaining axle boot integrity on Chevrolet and GMC 4x4 applications

Installation Notes and Tips

Confirm the front inner position and verify the boot dimensions before installation. Clean the CV joint area thoroughly, inspect the joint for wear or contamination, and ensure the boot seats correctly on both ends. Because fitment is limited to specific vehicle configurations, compare the vehicle year, make, model, and notes before ordering Moog 9461.

Quality Assurance

Moog develops chassis and driveline components with ongoing design improvements aimed at simplifying replacement and extending service life. This part number, 9461, reflects that service-focused approach for the listed Chevrolet and GMC applications.
