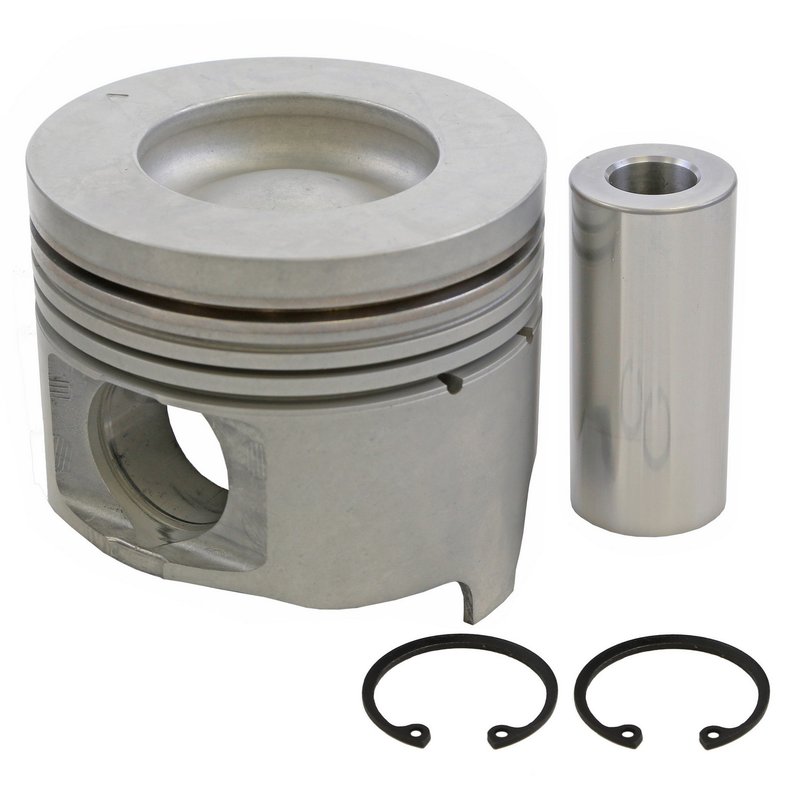

Sealed Power 2782PNL Engine Piston

Sealed Power 2782PNL Engine Piston

Sealed Power 2782PNL is a premium engine piston built for diesel cylinder block service where bore size, compression height, and ring package dimensions must match the application. It fits 2001-2005 Chevrolet Silverado 2500 HD, 2001-2005 Chevrolet Silverado 3500, 2001-2005 GMC Sierra 2500 HD, and 2001-2005 GMC Sierra 3500.

Key Features

• Cast aluminum piston construction for engine rebuild applications
• Bowl-style piston head for the specified combustion chamber design
• 103.00 mm cylinder bore diameter
• 49.80 mm compression height
• 34.50 mm piston pin outside diameter
• Ring groove dimensions: 3.00 mm top compression ring, 2.00 mm second compression ring, 3.00 mm oil ring
• Premium grade type for precision engine service
• Oversized: No

Detailed Description

Sealed Power 2782PNL engine piston is engineered for rebuilders and technicians working on compatible Chevrolet Silverado 2500 HD, Chevrolet Silverado 3500, GMC Sierra 2500 HD, and GMC Sierra 3500 diesel engines from 2001-2005. The bowl piston head, cast aluminum material, and specified ring thicknesses support correct fitment in applications that require exact bore diameter and compression height matching. Part number 2782PNL is also referenced by 2243451, 97303756, and S224-3451 for the same application.

What This Piston Helps Address

• Worn or damaged original piston surfaces during engine overhaul
• Compression loss caused by piston wear or ring land damage
• Incorrect piston-to-bore fit in rebuild work
• Combustion chamber service requiring the specified bowl piston profile
• Restoration of proper ring groove dimensions during cylinder block repair

Installation Notes and Tips

Verify cylinder bore diameter, compression height, piston pin diameter, and ring thickness before installation. Match the piston to the engine’s original specification and inspect the cylinder block, rings, and pin fit during assembly. Assembly lubricant is not included, so use the lubricant specified by the engine builder or service procedure.

Quality Assurance

Sealed Power states that its parts use modern designs, advanced materials, and ISO- and QS-certified manufacturing processes to meet demanding engine service requirements. Confirm all measurements against the engine build sheet before final assembly.
