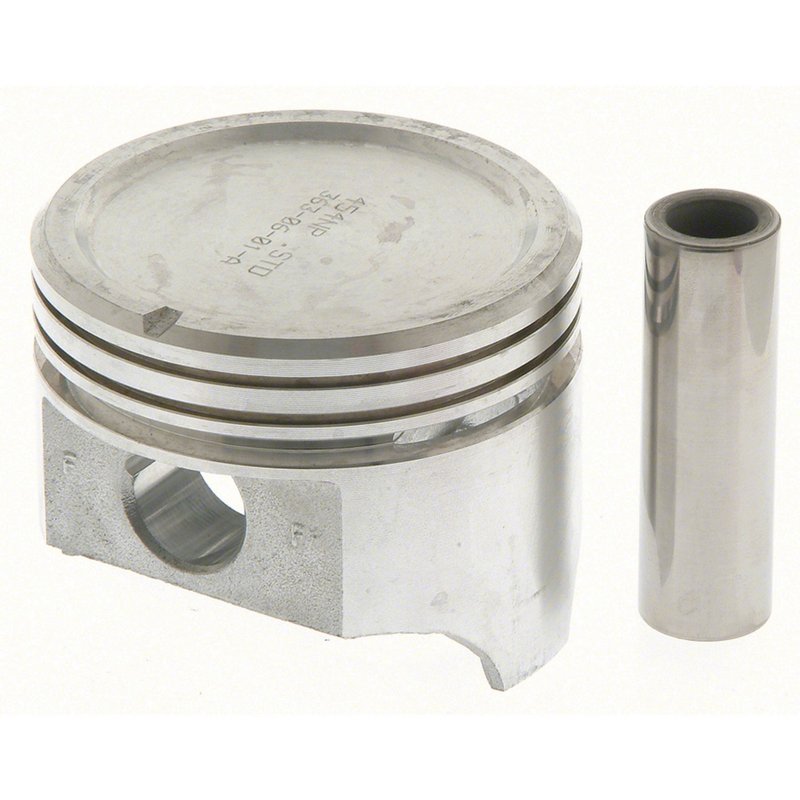

Sealed Power W454NP Engine Piston

Sealed Power Engine Piston W454NP Overview

The Sealed Power W454NP engine piston is designed for reliable performance in a range of GM vehicles including Chevrolet, Buick, Pontiac, and GMC models. This standard size cast piston features precise dimensions to ensure proper fit and function in engines requiring a 3.7360 inch bore diameter.

• Bore diameter: 3.7360 inches (94.9 mm)
• Compression distance: 1.540 inches
• Recessed head type with .110 inch depth and 3.115 inch diameter, 8.5:1 compression ratio
• Minimum clearance: 0.001 inch at 2.200 inches from top of head
• Pin diameter: 0.9275 inches (23.559 mm) with 0.06 inch offset
• Ring configuration: 2 rings at 5/64 inch width and 1 ring at 3/16 inch width
• Material: Durable cast construction
• Standard size, single piston package

Technical Details and Specifications

The W454NP piston is engineered with a recessed head design that measures .110 inches deep and 3.115 inches in diameter, supporting an 8.5:1 compression ratio. Its bore size of 3.7360 inches (94.9 mm) matches standard engine specifications for select GM vehicles. The piston pin diameter is 0.9275 inches with a 0.06 inch offset, which helps reduce piston slap and improve engine smoothness. The piston rings include two 5/64 inch wide rings and one 3/16 inch wide ring, providing effective sealing and compression retention. The minimum clearance of 0.001 inch at 2.200 inches from the top of the head ensures proper thermal expansion and piston movement within the cylinder.

Compatible Vehicles and Applications

This Sealed Power piston is compatible with a variety of GM makes and models, including Chevrolet Bel Air, Camaro, Caprice, Corvette, El Camino, Impala, Malibu, Monte Carlo, Nova, and various C-series trucks such as C10, C20, and C1500 Suburban. It also fits Buick models like Century and Skylark, Pontiac Firebird and Grand Prix, Oldsmobile Cutlass and 88, as well as GMC trucks and SUVs including Jimmy, K5 Blazer, and Sierra series. The W454NP piston is suitable for engine rebuilds or repairs requiring a standard size piston with these specifications.

Common Issues Addressed by the W454NP Piston

• Worn or damaged pistons causing loss of compression
• Engine knocking or piston slap due to improper fit
• Reduced engine performance from piston ring failure
• Overheating issues related to piston clearance
• Replacement during engine rebuilds for GM C-series trucks and classic muscle cars

Installation Notes and Tips

• Verify bore diameter and piston specifications before installation
• Ensure proper ring orientation and gap settings during assembly
• Check piston-to-cylinder wall clearance to maintain the 0.001 inch minimum clearance
• Use appropriate lubricants during installation to prevent initial wear
• Follow manufacturer torque specifications for connecting rod bolts

Quality Assurance and Warranty

Sealed Power pistons are manufactured to meet OEM standards using cast materials for durability and consistent performance. The W454NP piston undergoes rigorous quality control to ensure dimensional accuracy and material integrity. While specific warranty details may vary, Sealed Power products typically include coverage against manufacturing defects. Consult product documentation for exact warranty terms.
