OE Quality
60-Day Returns
Sealed PowerPart #: W470AP

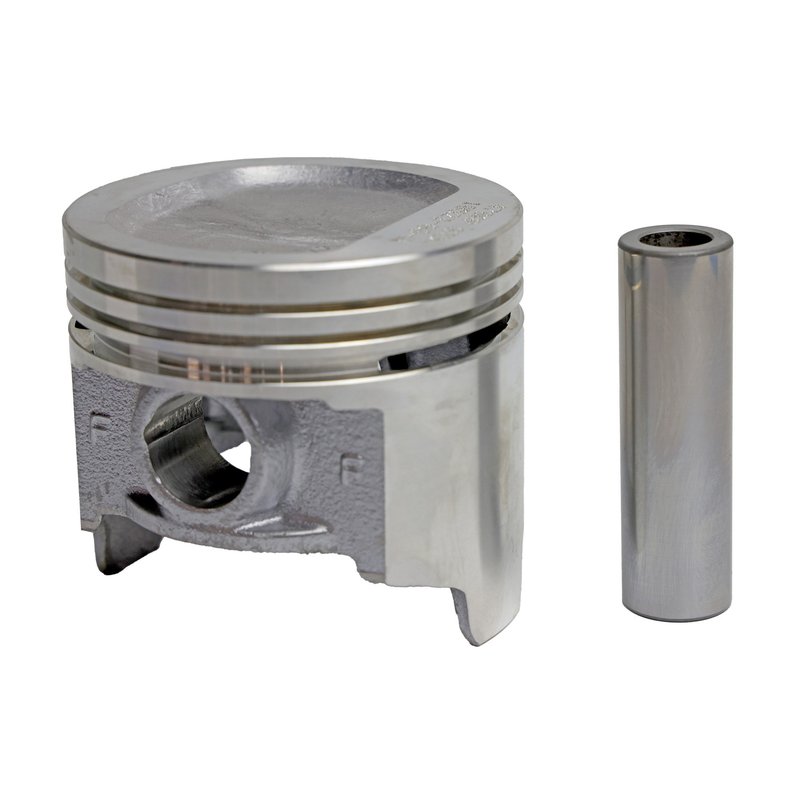

Sealed Power W470AP Engine Piston
43 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$62.03Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Jeep, Cherokee, CJ5, CJ7, Grand Wagoneer, J10, Scrambler, Wagoneer, and Wrangler
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Engine Piston options
Sealed Power W470AP Engine Piston
| Brand | Sealed Power |
|---|---|
| Part Number | W470AP |
| Bore (Inch) | 3.7500 |
| Bore (mm) | 95.2500 |
| Compression Distance | 1.633 |
| Head Illustration | 12 |
| Head Type | D shaped recessed head .178 deep |
| Minimum Clearance | 0.001 @ 2.640 from top of head |
| Note 1 | Standard size |
| Note 2 | Single piston |
| Package Alert | Single piston |
| Part Material | Cast |
| Pin Diameter (Inch) | 0.9313 |
| Pin Diameter (mm) | 23.655 |
| Pin Offset (Inch) | 0.06 |
| Pin Offset (MM) | 1.524 |
| Ring 1 Qty | 2 |
| Ring 1 Width | 5/64 |
| Ring 2 Qty | 1 |
| Ring 2 Width | 3/16 |
| Standard Size | Standard |
This part fits 43 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1990 | Jeep | Wrangler | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1989 | Jeep | Wrangler | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1988 | Jeep | Wrangler | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1987 | Jeep | J10 | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1987 | Jeep | Wrangler | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1986 | Jeep | CJ7 | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1986 | Jeep | Grand Wagoneer | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1986 | Jeep | J10 | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1985 | Jeep | CJ7 | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1985 | Jeep | Grand Wagoneer | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1985 | Jeep | J10 | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1985 | Jeep | Scrambler | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1984 | Jeep | CJ7 | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1984 | Jeep | Grand Wagoneer | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1984 | Jeep | J10 | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1984 | Jeep | Scrambler | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1983 | Jeep | Cherokee | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1983 | Jeep | CJ5 | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1983 | Jeep | CJ7 | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1983 | Jeep | J10 | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1983 | Jeep | Scrambler | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1983 | Jeep | Wagoneer | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1982 | Jeep | Cherokee | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1982 | Jeep | CJ5 | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1982 | Jeep | CJ7 | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1982 | Jeep | J10 | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1982 | Jeep | Scrambler | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1982 | Jeep | Wagoneer | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1981 | Jeep | Cherokee | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1981 | Jeep | CJ5 | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1981 | Jeep | CJ7 | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1981 | Jeep | J10 | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1981 | Jeep | Scrambler | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1981 | Jeep | Wagoneer | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1980 | Jeep | Cherokee | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1980 | Jeep | CJ5 | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1980 | Jeep | CJ7 | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1980 | Jeep | J10 | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1980 | Jeep | Wagoneer | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1979 | Jeep | Cherokee | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1979 | Jeep | CJ5 | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1979 | Jeep | CJ7 | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1979 | Jeep | J10 | 4.2L | L6 | N/A | 1 Piston; 3 Ring Piston; 1.633 (in) Compression Distance; 0.178 (in) Deep Recess; Cast Iron; with "D" Shaped Recessed Head; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
1147P22272242158323376532344863242301813444181344429042P92227L3103FP837P837STDTC2158
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
