Sealed PowerPart #: W525AP

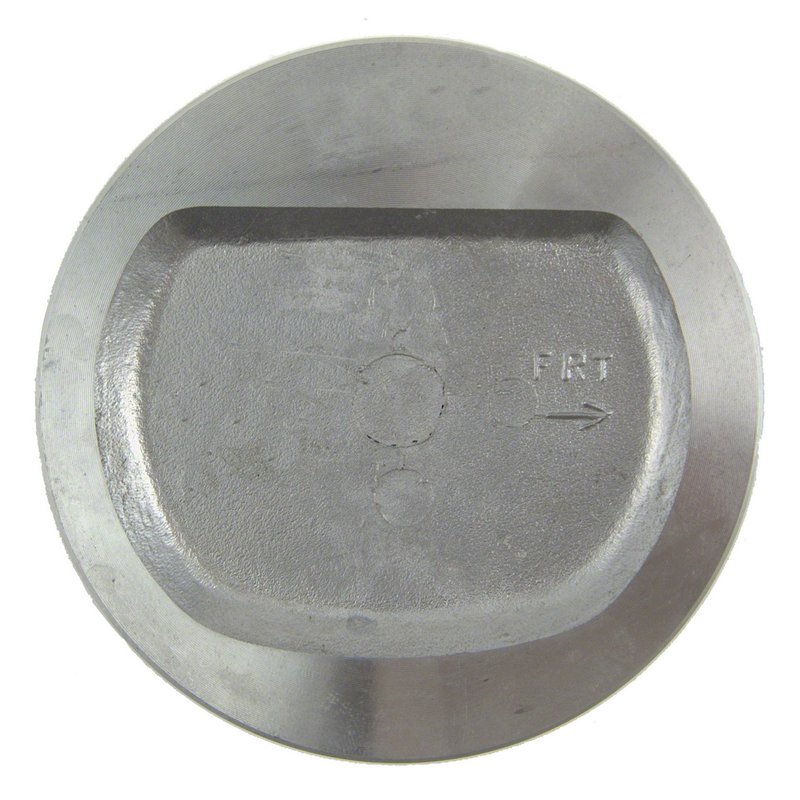

Sealed Power W525AP Engine Piston
39 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$63.30Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Jeep, Cherokee, CJ7, Comanche, Scrambler, Wagoneer, and Wrangler
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Engine Piston options
Sealed Power W525AP Engine Piston
| Brand | Sealed Power |
|---|---|
| Part Number | W525AP |
| Bore (Inch) | 3.8750 |
| Bore (mm) | 98.4200 |
| Compression Distance | 1.580 |
| Dome Volume CC | Negative 014.0 |
| Head Illustration | 12 |
| Head Type | Recessed head .116 deep - 9.2:1 c.r. |
| Minimum Clearance | 0.001 @ 2.420 from top of head |
| Note 1 | Standard size |
| Note 2 | Single piston |
| Package Alert | Single piston |
| Part Material | Cast |
| Pin Diameter (Inch) | 0.931 |
| Pin Diameter (mm) | 23.647 |
| Pin Offset (Inch) | 0.06 |
| Pin Offset (MM) | 1.524 |
| Ring 1 Qty | 2 |
| Ring 1 Width | 5/64 |
| Ring 2 Qty | 1 |
| Ring 2 Width | 3/16 |
| Standard Size | Standard |
This part fits 39 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1995 | Jeep | Cherokee | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1995 | Jeep | Wrangler | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1994 | Jeep | Cherokee | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1994 | Jeep | Wrangler | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1993 | Jeep | Cherokee | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1993 | Jeep | Wrangler | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1992 | Jeep | Cherokee | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1992 | Jeep | Comanche | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1992 | Jeep | Wrangler | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1991 | Jeep | Cherokee | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1991 | Jeep | Comanche | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1991 | Jeep | Wrangler | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1990 | Jeep | Cherokee | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1990 | Jeep | Comanche | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1990 | Jeep | Wrangler | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1989 | Jeep | Cherokee | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1989 | Jeep | Comanche | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1989 | Jeep | Wrangler | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1988 | Jeep | Cherokee | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1988 | Jeep | Comanche | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1988 | Jeep | Wrangler | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1987 | Jeep | Cherokee | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1987 | Jeep | Comanche | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1987 | Jeep | Wagoneer | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1987 | Jeep | Wrangler | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1986 | Jeep | Cherokee | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1986 | Jeep | CJ7 | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1986 | Jeep | Comanche | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1986 | Jeep | Wagoneer | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1985 | Jeep | Cherokee | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1985 | Jeep | CJ7 | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1985 | Jeep | Scrambler | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1985 | Jeep | Wagoneer | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1984 | Jeep | Cherokee | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1984 | Jeep | CJ7 | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1984 | Jeep | Scrambler | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1984 | Jeep | Wagoneer | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1983 | Jeep | CJ7 | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
| 1983 | Jeep | Scrambler | 2.5L | L4 | N/A | 1 Piston; 3 Ring Piston; 1.580 (in) Compression Distance; 0.120 (in) Deep Recess; Cast Iron; 8.2 :1 Compression Ratio; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); Sold Individually; Standard |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
