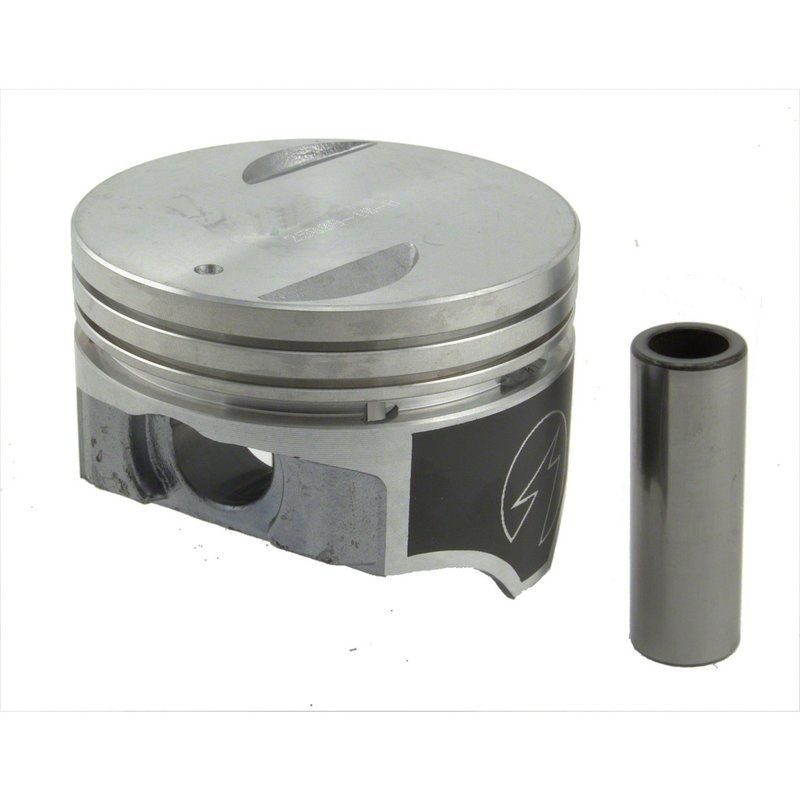

Sealed Power WH676P Engine Piston
| Brand | Sealed Power WH676P |
|---|---|
| Bore (Inch) | 3.7795 |
| Bore (mm) | 96.0000 |
| Compression Distance | 1.335 |
| Head Illustration | 5 |
| Head Type | Flat head w/2 valve reliefs |
| Minimum Clearance | 0.0015 @ 1.990 from top of head |
| Note 1 | Standard size |
| Note 2 | Single piston |
| Package Alert | Single piston |
| Part Material | Hypereutectic |
| Pin Diameter (Inch) | 0.9122 |
| Pin Diameter (mm) | 23.17 |
| Pin Offset (Inch) | 0.06 |
| Pin Offset (MM) | 1.524 |
| Ring 1 Qty | 2 |
| Ring 1 Width | 1.50mm |
| Ring 2 Qty | 1 |
| Ring 2 Width | 3.00mm |
| Standard Size | Standard |
| Weight W Pin Gram | 00518.+/- 00. |
| Fits | Ford · 3 vehicles |
Hypereutectic construction. Delivers a strong, heat-resistant piston design for demanding engine use.
Flat head design. With 2 valve reliefs for efficient combustion chamber clearance.
Sealed Power engineering. Uses innovative designs and ISO- and QS-certified manufacturing.
Cross-references F57E6110AB and F57Z6108A for the same application. See all 2.
Sealed Power WH676P Engine Piston for Ford Ranger
Sealed Power WH676P is a standard-size hypereutectic engine piston built for 1995-1997 Ford Ranger applications. It features a flat head with 2 valve reliefs, a 3.7795-inch bore, and a 1.335-inch compression distance for the specified engine setup.
Key Features
- Fits 1995-1997 Ford Ranger, N/A
- Standard-size piston with 96.0000 mm bore
- Hypereutectic piston material for precise engine fitment
- Flat head design with 2 valve reliefs
- 1.335-inch compression distance
- Pin diameter: 0.9122 inch / 23.17 mm
- Pin offset: 0.06 inch / 1.524 mm
- Ring groove widths: 1.50 mm, 1.50 mm, and 3.00 mm
- Minimum clearance: 0.0015 at 1.990 from top of head
- Sealed Power WH676P cross-references Ford F57E6110AB and F57Z6108A
Detailed Description
Sealed Power WH676P is an engine piston engineered for Ford Ranger models from 1995 through 1997. The hypereutectic construction supports consistent dimensional control, while the flat head with two valve reliefs matches the listed engine configuration. This piston is a standard-size replacement for service work that requires the specified bore, compression distance, pin diameter, and ring groove dimensions. If you are sourcing a Sealed Power WH676P piston for a Ford Ranger rebuild, verify piston grooving before selecting the ring set and confirm the engine’s required measurements before assembly.
Common Repair Uses
- Restoring compression in a worn Ford Ranger engine
- Replacing a damaged or scored piston during rebuild work
- Correcting piston-to-cylinder clearance concerns
- Addressing ring groove wear or mismatch during engine service
- Matching OE-style dimensions for 1995-1997 Ford Ranger repairs
Installation Notes and Tips
Confirm bore size, compression distance, pin diameter, and pin offset before installation. Check piston grooving before supplying the ring set, and verify the cylinder block and valve relief orientation against the engine specification. Proper measurement of clearance and ring groove width is important for final assembly on the Ford Ranger application listed for WH676P.
Quality Assurance
Sealed Power uses modern materials and ISO- and QS-certified manufacturing processes to produce engine components built to meet demanding engine service requirements. WH676P is manufactured to the listed dimensional specifications for accurate fitment in the stated Ford Ranger applications.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 1997 | Ford | Ranger | 2.3L | L4 | 1 Piston; 3 Ring Piston; 1.335 (in) Compression Distance; Flat Head Piston with 2 Valve Reliefs; Hypereutectic Alloy Piston; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Check Piston Grooving Before Supplying Ring Set; Sold Individually; Standard |
| 1996 | Ford | Ranger | 2.3L | L4 | 1 Piston; 3 Ring Piston; 1.335 (in) Compression Distance; Flat Head Piston with 2 Valve Reliefs; Hypereutectic Alloy Piston; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Check Piston Grooving Before Supplying Ring Set; Sold Individually; Standard |
| 1995 | Ford | Ranger | 2.3L | L4 | 1 Piston; 3 Ring Piston; 1.335 (in) Compression Distance; Flat Head Piston with 2 Valve Reliefs; Hypereutectic Alloy Piston; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Check Piston Grooving Before Supplying Ring Set; Sold Individually; Standard |
