Sealed PowerPart #: WH727CP

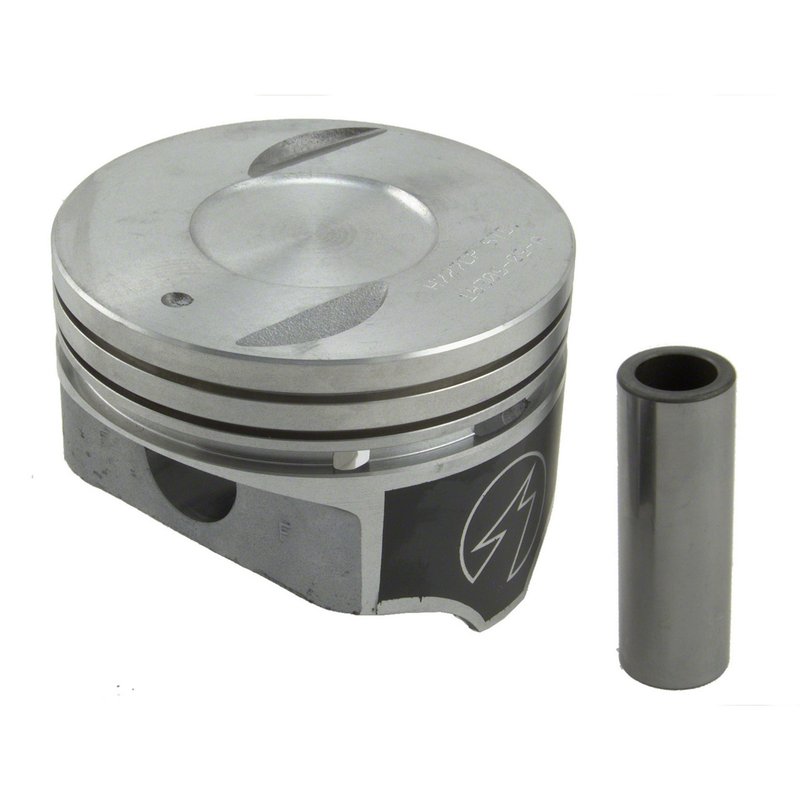

Sealed Power WH727CP Engine Piston
87 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$79.21Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Chevrolet and GMC, C1500, C2500, C2500 Suburban, C3500, G30, G3500, K2500, K2500 Suburban, K3500, P30, P3500, R2500 Suburban, R3500, and V3500
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Engine Piston options
Sealed Power WH727CP Engine Piston
| Brand | Sealed Power |
|---|---|
| Part Number | WH727CP |
| Bore (Inch) | 4.2500 |
| Bore (mm) | 107.9500 |
| Compression Distance | 1.625 |
| Head Illustration | 10 |
| Head Type | Recessed head .070 deep x 2.000 dia. w/2 valve reliefs; duroshiel |
| Minimum Clearance | See piston fitting information on carton label |
| Note 1 | Standard size |
| Note 2 | Single piston |
| Package Alert | Single piston |
| Part Material | Hypereutectic |
| Pin Diameter (Inch) | 0.9893 |
| Pin Diameter (mm) | 25.128 |
| Pin Offset (Inch) | 0.04 |
| Pin Offset (MM) | 1.016 |
| Ring 1 Qty | 2 |
| Ring 1 Width | 5/64 |
| Ring 2 Qty | 1 |
| Ring 2 Width | 3/16 |
| Standard Size | Standard |
This part fits 87 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1999 | Chevrolet | P30 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1998 | Chevrolet | P30 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1995 | Chevrolet | C2500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1995 | Chevrolet | C2500 Suburban | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1995 | Chevrolet | C3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1995 | Chevrolet | G30 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1995 | Chevrolet | K2500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1995 | Chevrolet | K2500 Suburban | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1995 | Chevrolet | K3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1995 | Chevrolet | P30 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1995 | GMC | C2500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1995 | GMC | C2500 Suburban | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1995 | GMC | C3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1995 | GMC | G3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1995 | GMC | K2500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1995 | GMC | K2500 Suburban | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1995 | GMC | K3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1995 | GMC | P3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1994 | Chevrolet | C2500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1994 | Chevrolet | C2500 Suburban | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1994 | Chevrolet | C3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1994 | Chevrolet | G30 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1994 | Chevrolet | K2500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1994 | Chevrolet | K2500 Suburban | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1994 | Chevrolet | K3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1994 | Chevrolet | P30 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1994 | GMC | C2500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1994 | GMC | C2500 Suburban | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1994 | GMC | C3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1994 | GMC | G3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1994 | GMC | K2500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1994 | GMC | K2500 Suburban | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1994 | GMC | K3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1994 | GMC | P3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1993 | Chevrolet | C1500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1993 | Chevrolet | C2500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1993 | Chevrolet | C2500 Suburban | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1993 | Chevrolet | C3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1993 | Chevrolet | G30 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1993 | Chevrolet | K2500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1993 | Chevrolet | K2500 Suburban | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1993 | Chevrolet | K3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1993 | Chevrolet | P30 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1993 | GMC | C2500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1993 | GMC | C2500 Suburban | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1993 | GMC | C3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1993 | GMC | G3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1993 | GMC | K2500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1993 | GMC | K2500 Suburban | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1993 | GMC | K3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1993 | GMC | P3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1992 | Chevrolet | C1500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1992 | Chevrolet | C2500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1992 | Chevrolet | C2500 Suburban | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1992 | Chevrolet | C3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1992 | Chevrolet | G30 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1992 | Chevrolet | K2500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1992 | Chevrolet | K2500 Suburban | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1992 | Chevrolet | K3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1992 | Chevrolet | P30 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1992 | GMC | C2500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1992 | GMC | C2500 Suburban | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1992 | GMC | C3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1992 | GMC | G3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1992 | GMC | K2500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1992 | GMC | K2500 Suburban | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1992 | GMC | K3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1992 | GMC | P3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1991 | Chevrolet | C1500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1991 | Chevrolet | C2500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1991 | Chevrolet | C3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1991 | Chevrolet | G30 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1991 | Chevrolet | K2500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1991 | Chevrolet | K3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1991 | Chevrolet | P30 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1991 | Chevrolet | R2500 Suburban | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1991 | Chevrolet | R3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1991 | Chevrolet | V3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1991 | GMC | C2500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1991 | GMC | C3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1991 | GMC | G3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1991 | GMC | K2500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1991 | GMC | K3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1991 | GMC | P3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1991 | GMC | R2500 Suburban | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1991 | GMC | R3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
| 1991 | GMC | V3500 | 7.4L | V8 | N/A | 1 Piston; 3 Ring Piston; 1.625 (in) Compression Distance; 0.070 (in) Deep x 2.000 (in) Diameter Recess; Hypereutectic Alloy Piston; with 2 Valve Reliefs; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
101668221252P22427759H3408H3408H8224DP550HP550HSTDTC2775ZH8224DZH8224DSTD
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
