Home› Engine > Cylinder Block Components› Sealed Power WH825CP Engine Piston
Sealed Power WH825CP Engine PistonOE Quality 60-Day Returns

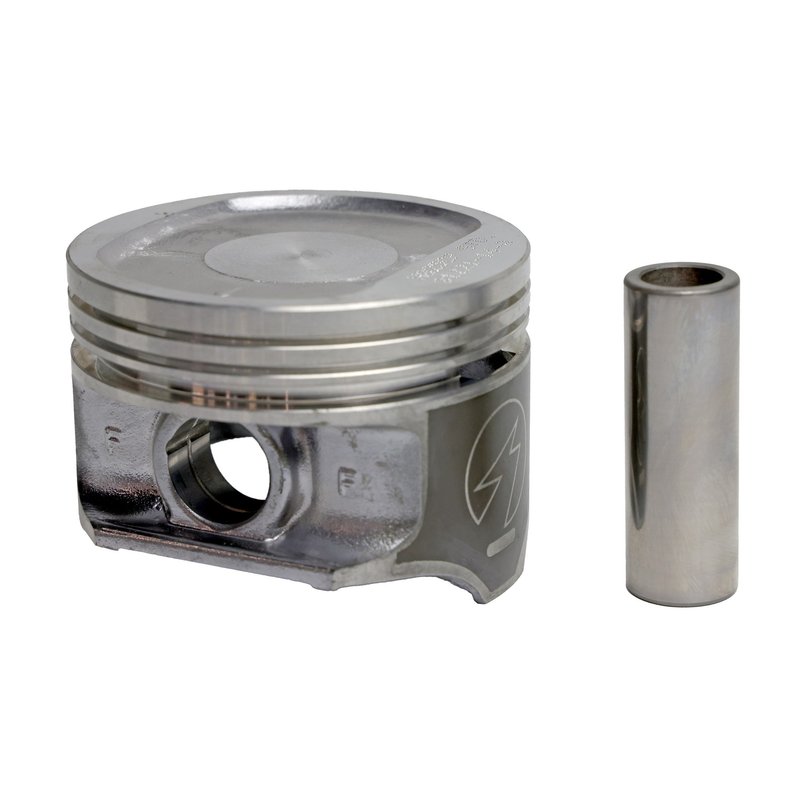

Sealed Power WH825CP Engine Piston - view 1
Sealed Power WH825CP Engine Piston - view 2
Part #: WH825CP

Sealed Power WH825CP Engine Piston

⚙️ 18 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$67.11Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Jeep, Cherokee, Grand Cherokee, TJ, and Wrangler
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Engine Piston options

Overview of Sealed Power WH825CP Engine Piston

The Sealed Power WH825CP engine piston is designed for reliable performance in Jeep Cherokee, Grand Cherokee, TJ, and Wrangler models. This hypereutectic piston offers precise dimensions and durable construction to meet the demands of standard size engine rebuilds.

  • Standard size piston with a 3.8750 inch (99.00 mm) bore diameter
  • Recessed head design with a .116 inch deep duroshield skirt coating
  • Compression distance of 1.592 inches for optimal combustion chamber fit
  • Pin diameter of 0.931 inch (23.647 mm) with a 0.06 inch (1.524 mm) pin offset
  • Equipped with two 5/64 inch wide compression rings and one 3/16 inch wide oil ring
  • Single piston package for individual replacement needs
  • Weight with pin approximately 568 grams

Technical Details and Construction

The WH825CP piston from Sealed Power is manufactured using hypereutectic material, which provides enhanced wear resistance and thermal stability compared to conventional cast pistons. The recessed head type with a .116 inch deep cavity supports efficient combustion and helps maintain proper compression ratios. The duroshield skirt coating reduces friction and wear between the piston and cylinder wall, contributing to longer engine life. Pin diameter and offset are engineered to reduce piston slap and improve overall engine smoothness. This piston is designed to meet the exacting standards required for Jeep Cherokee, Grand Cherokee, TJ, and Wrangler engines with a 3.8750 inch bore.

Compatible Jeep Models and Applications

This engine piston is compatible with the following Jeep models:

  • Jeep Cherokee
  • Jeep Grand Cherokee
  • Jeep TJ
  • Jeep Wrangler

It is intended for use in standard size engine rebuilds where a direct replacement piston is required. The WH825CP part number ensures proper fitment and performance for these specific Jeep applications.

Common Issues Addressed by the WH825CP Piston

  • Worn or damaged pistons causing loss of compression
  • Excessive piston skirt wear leading to engine noise
  • Overheating issues due to poor thermal conductivity of older pistons
  • Reduced engine efficiency from improper piston-to-cylinder clearance
  • Replacement during engine rebuilds or upgrades for Jeep Cherokee, Grand Cherokee, TJ, and Wrangler

Installation Notes and Tips

  • Verify bore size and piston clearance according to engine specifications before installation
  • Consult piston fitting information on the carton label for minimum clearance requirements
  • Use proper ring end gap and orientation during assembly to ensure optimal sealing
  • Apply assembly lubricant to piston skirts and pins to reduce initial wear
  • Follow manufacturer torque specifications for connecting rod bolts

Quality Assurance and Warranty

Sealed Power manufactures the WH825CP piston to meet OEM standards for durability and performance. The hypereutectic material and duroshield coating contribute to consistent quality and longevity. While specific warranty details should be confirmed at the point of purchase, Sealed Power products typically come with a limited warranty against manufacturing defects, providing confidence in the part’s reliability for Jeep Cherokee, Grand Cherokee, TJ, and Wrangler engine rebuilds.

BrandSealed Power
Part NumberWH825CP
Bore (Inch)3.8750
Bore (mm)99.0000
Compression Distance1.592
Head Illustration12
Head TypeRecessed Head .116 deep; DUROSHIELD~ skirt coated piston
Minimum ClearanceSee Piston Fitting Information on carton label
Note 1Standard Size
Note 2Single Piston
Package AlertSingle Piston
Part MaterialHypereutectic
Pin Diameter (Inch)0.931
Pin Diameter (mm)23.647
Pin Offset (Inch)0.06
Pin Offset (MM)1.524
Ring 1 Qty2
Ring 1 Width5/64
Ring 2 Qty1
Ring 2 Width3/16
Standard SizeStandard
Weight W Pin Gram00568.+/- 00.

This part fits 18 vehicles. Search below:

YearMakeModelLitersCylindersPositionNotes
2000JeepCherokee4.0LL6N/A1 Piston; 3 Ring Piston; 1.592 (in) Compression Distance; 0.116 (in) Deep Recess; Hypereutectic Alloy Piston; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard
2000JeepGrand Cherokee4.0LL6N/A1 Piston; 3 Ring Piston; 1.592 (in) Compression Distance; 0.116 (in) Deep Recess; Hypereutectic Alloy Piston; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard
2000JeepTJ4.0LL6N/A1 Piston; 3 Ring Piston; 1.592 (in) Compression Distance; 0.116 (in) Deep Recess; Hypereutectic Alloy Piston; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard
2000JeepWrangler4.0LL6N/A1 Piston; 3 Ring Piston; 1.592 (in) Compression Distance; 0.116 (in) Deep Recess; Hypereutectic Alloy Piston; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard
1999JeepCherokee4.0LL6N/A1 Piston; 3 Ring Piston; 1.592 (in) Compression Distance; 0.116 (in) Deep Recess; Hypereutectic Alloy Piston; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard
1999JeepGrand Cherokee4.0LL6N/A1 Piston; 3 Ring Piston; 1.592 (in) Compression Distance; 0.116 (in) Deep Recess; Hypereutectic Alloy Piston; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard
1999JeepTJ4.0LL6N/A1 Piston; 3 Ring Piston; 1.592 (in) Compression Distance; 0.116 (in) Deep Recess; Hypereutectic Alloy Piston; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard
1999JeepWrangler4.0LL6N/A1 Piston; 3 Ring Piston; 1.592 (in) Compression Distance; 0.116 (in) Deep Recess; Hypereutectic Alloy Piston; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard
1998JeepCherokee4.0LL6N/A1 Piston; 3 Ring Piston; 1.592 (in) Compression Distance; 0.116 (in) Deep Recess; Hypereutectic Alloy Piston; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard
1998JeepGrand Cherokee4.0LL6N/A1 Piston; 3 Ring Piston; 1.592 (in) Compression Distance; 0.116 (in) Deep Recess; Hypereutectic Alloy Piston; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard
1998JeepTJ4.0LL6N/A1 Piston; 3 Ring Piston; 1.592 (in) Compression Distance; 0.116 (in) Deep Recess; Hypereutectic Alloy Piston; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard
1998JeepWrangler4.0LL6N/A1 Piston; 3 Ring Piston; 1.592 (in) Compression Distance; 0.116 (in) Deep Recess; Hypereutectic Alloy Piston; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard
1997JeepCherokee4.0LL6N/A1 Piston; 3 Ring Piston; 1.592 (in) Compression Distance; 0.116 (in) Deep Recess; Hypereutectic Alloy Piston; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard
1997JeepGrand Cherokee4.0LL6N/A1 Piston; 3 Ring Piston; 1.592 (in) Compression Distance; 0.116 (in) Deep Recess; Hypereutectic Alloy Piston; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard
1997JeepTJ4.0LL6N/A1 Piston; 3 Ring Piston; 1.592 (in) Compression Distance; 0.116 (in) Deep Recess; Hypereutectic Alloy Piston; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard
1997JeepWrangler4.0LL6N/A1 Piston; 3 Ring Piston; 1.592 (in) Compression Distance; 0.116 (in) Deep Recess; Hypereutectic Alloy Piston; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard
1996JeepCherokee4.0LL6N/A1 Piston; 3 Ring Piston; 1.592 (in) Compression Distance; 0.116 (in) Deep Recess; Hypereutectic Alloy Piston; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard
1996JeepGrand Cherokee4.0LL6N/A1 Piston; 3 Ring Piston; 1.592 (in) Compression Distance; 0.116 (in) Deep Recess; Hypereutectic Alloy Piston; Ring Groove Widths: 5/64 (in) , 5/64 (in) , 3/16 (in); DUROSHIELD Skirt Coated Piston; Sold Individually; Standard

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

22294798329

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
